Cooling Tower Demister Drift Eliminator pvc Mist Eliminator Factory Price
PVC drift eliminator/Air Inlet Louvers modules improve air flow into the cooling tower, keep out debris, eliminate water splash-out (which can cause icing, near-site water damage, and costly water and water treatment chemical loss), restrict the amount of sunlight into the cooling tower (to impede algae growth), reduce noise from the tower, and improve the tower's appearance.
Material Info : Air intake louvers are constructed of UV-stabilized PVC. This compound has outstanding resistance to weather exposure and is nearly impervious to chemical degradation by alkali, acids, greases, fats, oils, and biological attacks. It also has an excellent fire rating due to its self-extinguishing characteristics and meets or exceeds Cooling Technology Institute Standard 136. We also have PP and PVC material which can meet the water high temperature requirement.
Features of PVC air inlet louvers/drift eliminator for cooling tower• Significantly block sunlight (70:1 light reduction) to reduce algae growth on interior surfaces of the cooling tower system, thus reducing the cost of algae-removal chemicals and labor.
• Reduces noise leaving the tower through the louver modules by approximately three decibels.
• Achieves very low pressure drop results.
• Pre-assembled modules available in a variety of lengths.
• Optional Assembly frames made of extruded PVC available for easy installation and access for cleaning and maintenance (mounting flanges available on 1, 2, or all 4 sides).
• Rigid, UV-stabilized PVC meets Cooling Technology Institute Standard 136.
Sheet Width(mm)
| Sheet Length
| Thickness
| Sheet Spacing
|
145mm
| Customized
| 0.2-0.4mm
| 25-31mm
|

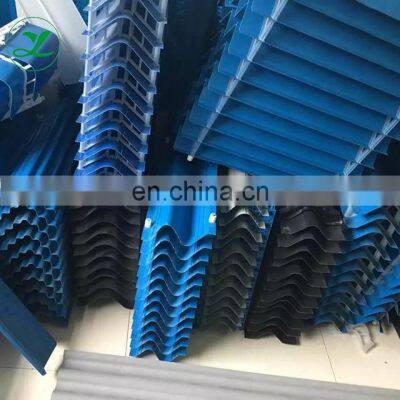

Detailed Images
Cooling Tower Drift EliminatorUsed for the cooling tower fill.
Cooling Tower Blade Drift EliminatorUsed for the cooling tower fill.
Mist Drift EliminatorUsed for Cooling Tower
Air Inlet LouverUsed for Cooling Tower.
Packing & Delivery
Related Products
FAQ & Contacts
Q: Are you trading company or manufacturer ?
A: We are manufacturer with our own factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge. And the freight cost will on the buyer's side.
Q: What is your terms of payment ?
A: Payment<=USD1000, 100% in advance. Payment>=USD1000, 30% T/T in advance ,balance before shipment.
