Dk7720 Energy-Efficient Wire EDM for Sustainable Manufacturing

Product Description

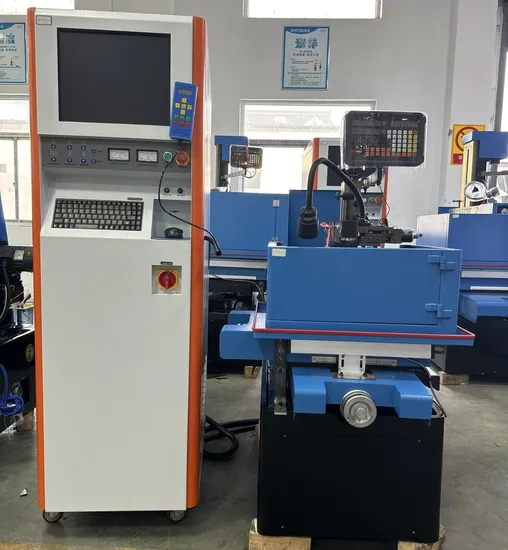

DK77 Series DK7720 High speed EDM wire cutting machine
High efficiency fast wire cutting is a set of machine tool electrical appliances, high frequency power supply, servo control and graphics programming as one, to achieve high efficiency, high precision, high finish, simple processing control, greatly improve the processing level of fast wire cutting machine. Flexible commutation with frequency converter is adopted in machine tool commutation, which can arbitrarily adjust the speed of wire conveyor drum, thereby improving the smoothness of workpiece. High efficiency (cutting efficiency can reach 7000 to 8000 square millimeters per hour) is twice the cutting efficiency of ordinary machine tools. Energy saving (machine energy consumption is 0.85 degrees per hour) is 50% more energy saving than that of ordinary machine tools. Environmental protection (machine tool environmental protection water cover to prevent working fluid splashing) can be replaced once in 30 working days by using high-pressure filter water tank working fluid, which greatly improves working time and reduces the number of sewage discharge. The electrical parts of the machine tool are all installed in the control cabinet for waterproof treatment, and all the oil supply is integrated with manual oil pump.
1.Select paired clearance-free bearings to improve accuracy.
2. Selection of high quality ball screw
3. Using steel-inlaid guide rail
4. Good assembly process requirements
5.By using frequency converter, the speed of the wire drum can be adjusted arbitrarily, thus improving the smoothness of the workpiece.
6.Conventional processing efficiency can reach 150 mm2/min.
DK77 Series DK7720 High speed EDM wire cutting machine

S/N	item	parameter
1	Model	National Standard DK7720
2	Electrical cabinet form	Standing cabinet/counter (full step type)
3	Guide rail	Steel-inlaid guide rail
4	Lead screw form	Ball screw
5	XYUV Motion Motor Form	Reactive stepping motor
6	Working mode of wire-moving motor	Frequency Converter Speed Regulation 1~12m/s
7	Machine Protection	Environmental Protection Cover
8	Motion Resolution of Motion Axis	0.001mm
9	Woektable size	420X270
10	X-Y Axial Travel	250X200mm
11	U, V-axis travel	±35×±35mm
12	Machining taper/thickness	±6°/80mm
13	Max. Linear Cutting Thickness	400mm(Z-axis manual lifting)
14	control mode	4-axis linkage
15	Max.Load Weight	160kg
16	Max. Processing Current	8A
17	Max.Machining EfficiencyCr12,H=60mm	≥180 mm²/m
18	Surface roughness(Linear cutting,H≤40mm)	Ra≤2.0μm
19	Cutting accuracyCr12,H=40mm	≤0.01mm
20	Radial Running of Storage Cylinder	≤0.02mm
21	Diameter range of molybdenum wire	0.12~0.22mm
22	Silk storage capacity	250m
23	Molybdenum Wire LossCr12,H=40mm	≤0.02mm /300000mm²,
24	Cutting power supply	Non-resistive High Frequency Power Supply System
25	operating system	Windows 98/XP(According to Control Software)
26	Control system	AUTOCUT/HL/HF
27	communication interface	LAN,RS232,USB
28	Operational function	Drawing or importing CAD graphics
29	Working tank volume	55L
30	Working fluid filtration mode	Screen filtration
31	Total Weight	1200 kg
32	Outward Size of Main Engine	1500x1000x1700mm
33	Cabinet size	730×630×1220mm
34	Rated power of electrical appliances	≤ 2.7 kW

Product accessories

S/N	Product Name	Position	QTY
1	main engine		1
2	Waterproof cover	On host	1
3	Working lamp	On host	1
4	Fixture (Workpiece Support Frame)	In the water tank	1
5	Filtration system		1
6	control cabinet		1
7	Machine Tool Electricity	On Control cabinet	1

Outbound Documents

S/N	name	spe	Manufacturer	Free Distribution Volume
1	scissors	Number 3	Normal Purchase in Market	1
2	Inner hexagonal wrench	M4-M10(5)		1
3	Stay wrrench	14-17		1
4	Wooden screwdriver	One , cross type		2
5	Oil gun	Metal Shell		1
6	Molybdenum wire corrector	H80mm	Self-control	1
7	Upper silk wheel			1
8	Working fluid	Emulsifier	Longkai, Suzhou	1

---
