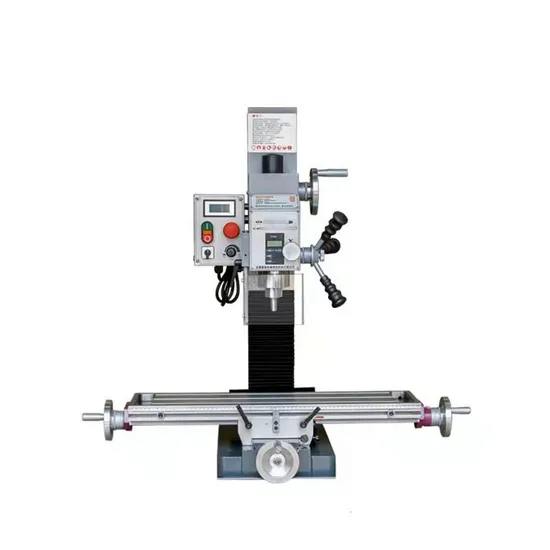

High-Precision Vertical Small Gear Head Metal Bench Milling and Drilling Machine

Product Description

Recommend Products
view more >> Recommended by seller

Automatic Feed Vertical Drilling Machine milling drilling machine drilling machines for sale $350.00 - $1,940.00 / set 1.0 set

Metal Taladro De Columna Vertical Drilling Machine with Rotary Table $680.00 - $1,880.00 / unit 1.0 unit

Quality Assurance Heavy Duty CNC Deep Bore Hole Gun Barrel Drilling Machine $19,880.00 - $60,826.00 / set 1.0 set

Mini best 25V Small Vertical Drilling And Milling Machine $628.00 - $2,218.00 / set 1.0 set

Hot Selling China Made High Precision Metal Bed Type Mini CNC Milling Machine $4,250.00 - $14,500.00 / set 1.0 set
Products Description

Drilling machine is a kind of machinery and equipment that leaves cylindrical holes or holes on the target by rotary cutting or rotary extrusion with more hard and sharper tools than the target. It is also called drilling machine, drilling machine, drilling machine, through hole machine, etc.
Characteristic


(1) Percussive drilling machine: wire rope percussive drilling machine, drill pipe percussive drilling machine. (2) Rotary drilling rig: vertical shaft type - handle feeding type, screw differential feeding type, hydraulic feeding type; rotary table type - steel rope plus decompression type, hydraulic cylinder plus decompression type; mobile rotary device - full hydraulic power head type, mechanical power head type.





(3) Vibration drill. (4) Compound drilling rig: the drilling rig with vibration, impact, rotation, static pressure and other functions combined in different combinations.
Specifcation

Drilling capacity		40mm
Face milling capacity		80mm
End milling capacity		32mm
Distance from spindle nose to table		450mm, 680mm,440mm
Min. distance from spindle axis to column		193.5mm,272.5mm,260mm
Spindle travel		130mm
Spindle taper		M.T.4 or R8
Step of spindle		12,6
Range of spindle speed	50Hz	80-2080,80-1250r.p.m.
	60Hz	100-2500,95-1500r.p.m.
Swing diameter of headstock		405mm,680mm
Swivel angle of headstock	horizontally	3600
	perpendicularly	900
Size of table		800 x 240mm2, 700x 240mm2
Forward and backward travel of table		175mm
Left and right travel of table		500mm, 400mm
Power		1.1kw (2Hp),1.1kw(0.75Hp)
Voltage/Fequency		As custmers requirement
Overall height (Without stand)		1060mm; 1300mm;1020mm
Net weight		283kg,318kg,323kg
Gross weight		333kg,368kg,373kg
		880 x 770 x 1140mm3
Packing size		1030 x 770 x 1140mm3
		1030 x 832 x 1140mm3
Loading amount (overall height)		36pcs/20container 18pcs/20container 28pcs/20container

Company Profile
Our Service
Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITEDCanada Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA

COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt


Contact: Ahmed Refaat
SJR MACHINERY LIMITEDAlgeria
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807

Packing & Delivery
We choose the best packaging, the most excellent logistics services, to ensure that your goods faster and safer to reach the destination.

FAQ
Q.What are your normal lead times? A.Our company typical lead times range from 3-4weeks after receipt of order.

Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.

Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.

Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.

Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.

Q.How to control the quality of the products?
A. We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
