Product Details
Product Description
Product Description

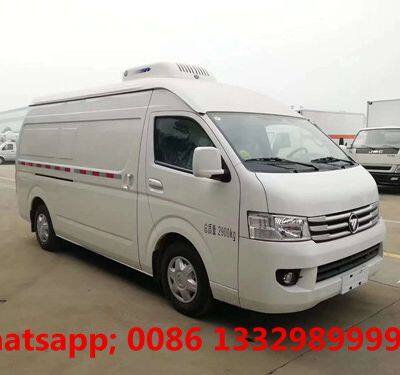

FOTON G9 LHD gasoline engine 1T refrigerated minivan bus for sale
Customized FOTON brand G9 LHD 0.5T-1T refrigerated minivan car for sale
FOTON G9 LHD gasoline engine refrigerated minibus for sale
TRUCK MODEL: BJ5039XLC-E1
Driving type: LHD( left hand drive)
Overall dimension(L*W*H): 5380×1920×2545(mm)
cold van box dimension(L*W*H): 3030×1580×1460(mm) (single-row cab)
other devices of FOTON G9 RHD refrigerated minivan is as below：
3100mm wheelbase,
total mass：2900kg，
curb mass：2248kg，
rated mass： 522kg,
If you're interested in our refrigerated minivan bus, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.
FOTON G7 refrigerated minivan adopts FOTON G9 van high-top driver cab, 2 seats (single-row cab); 2+2/2+3(double-row cab), Mitsubishi Motors Engine 4K22D4M gasoline 160hp Euro 6 engine, (displacement: 2400ml/power: 118KW), 5 speed manual gearbox, 195R15C tires*4, double wishbone torsion bar spring independent front axle, steel spring rear axle, original air conditioner, power steering, electric windows and doors, Remote Control Lock, Automatic brake adjustment arm ，ABS+EBD, oil cut braking(front disk braker), Electronic adjustable headlamp, rear blind window, insulation compartment partition at the driver cab, etc.
The cold van box devices: the refrigerated van box manufactured by Chengli Company adopt siquid adsorption Hydro-pressure adsorption Integrating molding production lines, so the thermal insulation properties reach China A standard. The interior of the van box adopts the latest nano glass fiber reinforced plastics (FRP)（No light absorption， good heat insulation property, hardness high, anti-oxidation）; the middle Heat insulating layer is with XPS Extruded Polystyrene Board. There is LED nigh light inside the van body box, double rear doors,(stainless steel edge, Stainless steel lock hinges),door edge with labyrinth rubber sealings.
The refrigerated reefer unit: standard with -5℃ or -15℃. Choose to install Chinamade van top-mounted refrigerated reefer unit.
The refrigerated truck is used for transporting pharmaceutical products. Then the refrigerated truck for pharmaceutical products transportation need to install 5-side vent slots, l temperature-humidity recorder, and dual-temperature refrigerated reefer unit.
main technical parameters of FOTON G9 refrigerated truck is as below.
Product model
| BJ5039XLC-E1 G9
|
Main technical parameters
|
Overall dimension(L*W*H)
| 5380×1920×2545(mm)
| Cargo body dimension(L*W*H)
| 3030×1580×1460(mm)
|
Total mass
| 2900(Kg)
| Curb mass(kgs)
| 2248(Kg)
|
Driver cab seated person
| 2,2+2,2+3
| Rated mass
| 522,392,327(Kg)
|
Approach/departure angle
| 16/17(°)
| Front/rear suspension
| 1190/1080,1190/1100(mm)
|
Axle load
| 1300/1600
| Wheelbase
| 3110(mm)
|
Axle nos.
| 2
| Max speed
| 150(km/h)
|
Oil consumption(L/100KM)
| 9.6
| Steel spring
| -/4
|
Tires nos.
| 4
| Tires specification
| 195R15C
|
Front tread
| 1655
| Rear tread
| 1650
|
Engine main parameters
|
Engine model
| Manufacturer
| displacement(ml)
| Power (kw)
|
4K22D4M
| Mitsubishi Motors Engine
| 2378
| 118/160
|
Fuel type
| Gasoline
| Emission standard
| Euro Ⅵ
|
>>
