Safety Protection Sh-Fsj-1.0 Synchronous High Performance Wire Pay off Machine

Product Description

Product Description

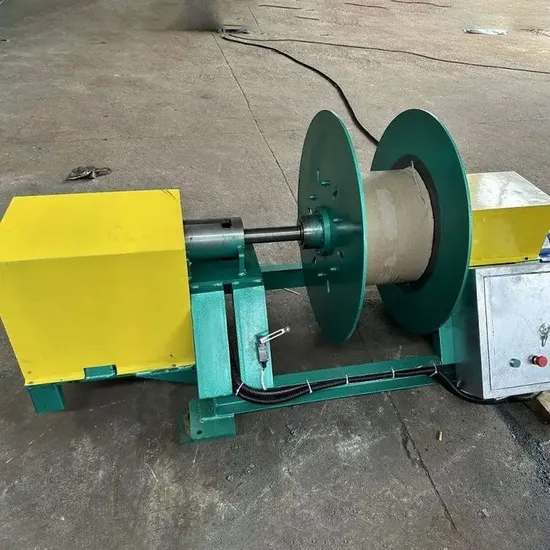

Synchronous Rope Release Machine
The rope release frame is mainly designed for use with steel wire ropes that require tension. Solved the problem of high manual labor intensity in the past, and improved production efficiency and safety, Enterprises, workshops, processing workshops, storefront operations, and other pieces can all be used. After debugging the relevant parameters, automatically clamp the fixture, start the motor to rotate forward, and drive the unwinding mechanism to run. Simultaneously cooperates with the running speed synchronization of the winding mechanism, Easy to operate, convenient for one person to work, time-saving, and labor-saving.
In case of an emergency, press the emergency stop button to stop the machine. The equipment has various safety protection measures such as overvoltage, overcurrent, overload, overheating, under voltage, and under voltage.
Working voltage: SH-FSJ-1.0 external 380V, three-wire four-wire AC power supply. The neutral line must be connected.
Operating speed: The maximum speed regulation of the frequency, converter is 50HZ. But it is not recommended to operate at the highest speed.
Maximum wire diameter: 16MM.
Product Parameters

WINDING MACHINE SPECIFICATION
Product Name	Synchronous Rope Release Machine
Keywords	Release Machine
Series Model	SH-FSJ-1.0
Overall Size	800MM*600MM*800MM
Net Weight	400KG
Wiring	2.5 Square Copper Core Cable
Wiring Method	Three-Phase Five-Wire Wiring
Working Voltage	Not Exceeding 380V
Working Power Supply	Three-Wire Four-Wire AC Power Supply
Operating Speed	Inverter Maximum Speed Regulation 50HZ
Maximum Wire Diameter	16mm
Usage	Enterprises, Workshops, Processing Workshops, Store Operations, Etc.
Customization	Accept
MOQ	Low MOQ
Sample	Accept
After Sales Service Is Guaranteed.

Detailed Photos
INSTALLATION AND WIRING -01
Forklifts can be used to lift the chassis for loading and unloading, or lighting tools such as cloth bags can be used for lifting. Fix the equipment with expansion screws.
INSTALLATION AND WIRING -02
The wiring adopts a 2.5 square copper core cable and three-phase five-wire wiring. The fluctuation of power supply voltage shall not exceed 380v + 15%. After correctly connecting the wires, close the circuit. jog forward and the motor can rotate normally.
SECURITY AND MAINTENANCE -01
During the work process, it is important to coordinate the running speed well. Avoid safety accidents caused by high-speed operation.
SECURITY AND MAINTENANCE -02
Do not overload the operation to avoid damaging the equipment or burning out the motor and electrical components.
SECURITY AND MAINTENANCE -03
Regularly clamp lubricating air on the gearbox and observe the temperature rise and noise of the motor. if the temperature rise exceeds 85 degrees, stop the machine for inspection.
FAQ
Q1: Can l get some samples?
A1: We are honored to offer you samples for quality check. But you need to pay the shipping fee.
Q2: Do you have the products in stock?
A2: Are to be produced according to your order including: Not samples.
Q3: What's the delivery time?
A3: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.
Q4: How does your factory do regarding quality control?
A4: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q5: What is your payment?
A5: TT
Q6: What are your shipping terms?
A6: EXW.FOB.CNF.CIF.

---
