ASTM D1881 Foaming Tendencies of Engine Coolants Tester

Product Details

Product Description

Product Description

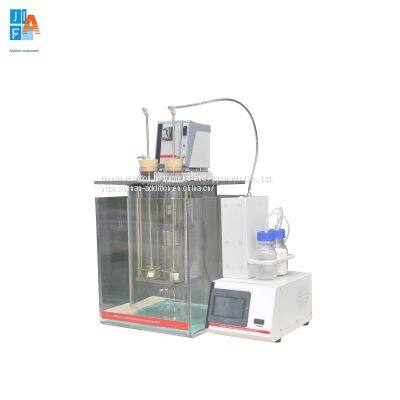

Foaming Tendencies of Engine Coolants Tester ASTM D1881
Product Model: Jf0066
Product Introduction
The tester measures the foam tendency of engine coolant with glassware under certain temperature and ventilation conditions controlled in the laboratory. It uses a high temperature resistant glass cylinder as the heating bath body to ensure a uniform temperature in the working environment. The instrument is equipped with a special airflow control system to reduce errors caused by manual intervention on the results.
Technical Parameter
1. Applicable standard: ASTM D1881
2. Digital temperature control: 88±1℃
3. Air flow rate: 1000±25ml/min
4. Working unit: 2-hole operation
5. Stirring method: motor stirring
6. Heating method: electric heating tube heating
7. Flow control: precision flow meter (or optional electronic flow meter, LCD touch screen digital display)
8. Timing method: digital display timer (or optional LCD touch screen automatic timing)
9. Working power supply: AC220, 240V/50, 60Hz
10. Power of the whole machine: 2500W
11. Instrument size: 520*360*690mmmm
12. Net weight: 42KG
Performance characteristics
1. Split structure, including test host and air source control box;
2. 360° transparent structure, easy to observe;
3. The special clamping device can prevent the measuring cylinder from floating well without pressing blocks;
4. Air filter with molecular sieve;
5. Safety measures to prevent overheating or low liquid level;
6. Sputtering turbine agitator to ensure the uniform temperature of the bathtub;
7. Electronic flowmeter, automatic control flow 1000±5ml/min (optional);
8. Touch screen operation, foam volume segment timing buzzer reminder (optional);
9. Omron PID thermostat, LCD digital display temperature, accuracy ±0.1℃

---
