US$0.20-0.24
|
16,500 Watt
(MOQ)
|
Basic Info.
Number of Cells
Please Contact Us
Application
Home/Industrial/Office /Apartment
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box (Protection Degree)
IP67/IP68
Maximum System Voltage
1500V
Maximum Power Voltage
42.1vmp
Maximum Power Current
13.06imp
Cable
4mm² Cable 30cm+Mc4
Front Cover Material
Low-Iron Tempered Glass
Front Cover Thickness
3.2mm
Short Circuit Current
13.9+3%
Backsheet Color
White or Black
Type
Mono 550W Industrial Solar Panels Price
Transport Package
Wooden Pallet Packing
Specification
2279*1134*35
Origin
Foshan, Guangdong, China
Production Capacity
50000 Pieces/Year
Product Description

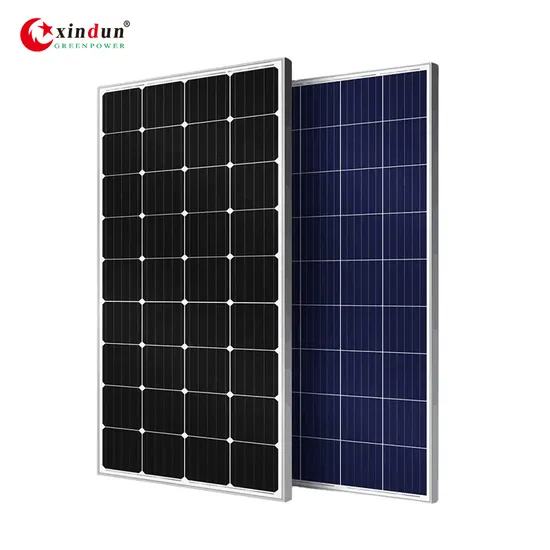

* The details page is for Monocrystalline silicon solar panel , If you want to get the Polycrystalline silicon solar panels, We will provide picture, video, technical parameter for you.
|
Inverter Feature
1. Outstanding mechanical load resistance 2400 Pa wind load, 5400 Pa snow load 2. Anti-PID(potential induced degradation) Passed anti-PID test under 85% damp heat, 85% relative humidity for 96 hours
3. Great Durability against extreme conditions
Passed salt mist corrosion test,ammonia corrosion test, dust&sand test, fire test, all certified by TUV
4. Double electroluminescence ( EL ) tests
Carefully inspected before and after lamination to guarantee fault-free modules
Product Parameters
| Model Type | XD535W-36M | XD540W-36M | XD545W-36M | XD550W-36M |
| Dimensions (L / W / H) | 2279×1134×35 |
| Peak Power at STC (Pmax) | 535 | 540 | 545 | 550 |
| Maximum Power Voltage (Vmp) | 41.6 | 41.76 | 41.93 | 42.1 |
| Maximum Power Current (Imp) | 12.84 | 12.93 | 13 | 13.06 |
| Open Circuit Voltage (Voc) | 49.5±3% | 49.7±3% | 49.9±3% | 50.1±3% |
| Short Circuit Current (Isc) | 13.61±3% | 13.72±3% | 13.81±3% | 13.9±3% |
| Module Efficiency(%) | 20.93 | 21.12 | 21.32 | 21.51 |
| Maximum System Voltage(V) | 1500V |
| Maximum Series Fuse Rating(A) | 25 |
| Power Tolerance | 0~+3% |
| Operating and Storage Temperature(ºC ) | -40°C~+85°C |
| Front Cover Material | low-iron tempered glass |
| Front Cover Thickness | 3.2mm |
| Cell (Quantity/Type/Dimensions) | 182*91 Mono |
| No. of Cells | 144 (6*12)*2 |
| Frame (Material) | Anodized Aluminium Alloy |
| Junction Box (Protection Degree) | IP67/IP68 |
| Cable (Length/Cross-Sectional Area) | 4mm² cable 30cm+mc4 |
Product Description
| Anodized aluminium alloy frame
1.Good workability;
2.Good weather resistance
3.Strong anodized aluminum sheet metal
4.High fire resistance
5.Anodized aluminum plate has strong anti-fouling properties
6.Strong applicability |
3.2mm tempered glass
High bending strength, high impact strength and high safety.
Resistant to tapid cooling and heat, generally can withstand the temperature difference of more than 150LC, which has a significant effect on preventing thermal cracking. | |
| Solar Cell
Mono-crystalline solar cell,efficiency is as high as 22% above. Encapsulation process adopts fully automatic welding technology. |
Junction Box
The connection device between the solar cell array composed of solar cell modules and the solar charge control device. its main function is to connect and protect the solar photovoltaic modules, connect the power generated by the solar cells with external lines, and conduct the electricity generated by the photovoltaic modules Current. | |
Practical Application
Packaging & Shipping
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.Shipping1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.3. Customers specifying freight forwarders or negotiable shipping methords.4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
