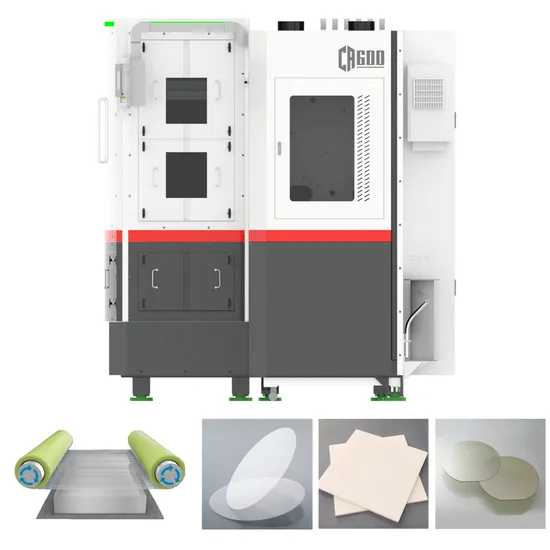

CA600 Multi Wire Saw for Cutting Sapphire

Product Description

Product DescriptionCA600 Multi-wire Saw is mainly used for slice processing of super hard and brittle materials such as Sapphire, Quartz Crystal, Special Ceramics, Silicon Nitride, etc. The machine is suitable for cutting materials in medium and large size with the advantages of high cutting efficiency, high accuracy, stable quality and low costs. The four rollers design can cut products larger than 1mm. Product Features>The whole casting structure has high damping coefficient and excellent vibration damping performance.
> The worktable swings with the workpiece center as axis for stable cutting.
> Both front and rear bearing boxes of rollers adopt oil-cooled bushing structure to ensure high running speed.
> The wire pay-off wheel adopts the standard universal spool (PV600 reinforced I-wheel), and it's no need to rewind.
> Wire break memory system.
Cut Samples
Product Parameters

Item	Detail	Parameter
Model	Model	CA600
Ability	Maximum work size	600x600x600mm
Wire Guide Roller	Out diameter *Workable width	Φ170±10*610mm*4 rollers
Diamond wire	Wire diameter	φ0.12mm-φ0.25mm
	Storage (PV600 reinforced I-wheel)	40km(φ0.25mm)
	Maximum running speed	1500m/min
Workbench	Quantity	1
	Travel of table	750mm
	Table swing	±10°
	Cutting method	Vertically upward movement
	Cutting feed speed	0.1~99.9mm/min
Cutting fluid	Fluid	Water-based cutting fluid or cutting oil
	Storage	500L
	Flow rate	200L/min
Power	Power supply	380V±10% 50Hz
	Power	55kw
	Air supply	Adopting water-based cutting fluid, the air pressure is ≥ 0.4 MPa.
Size & Weight	Size L*W*H	2850mm*2350mm*3200mm
	Weight	9500Kg

About Us
FAQ1. What Materials Could The Multi-Wire Saws Cut?
Our multi-wire saws can cut all kinds of hard and brittle materials such as Sapphire, Quartz Crystal, Optical Glass, Magnets, Ceramics, Silicon Wafers, Silicon Carbide, Precious Metal, etc.
2. What's The Size Range Of The Cut Product?
The maximum diameter of the cut material is up to 1000mm.
The minimum thickness of the wafers after cutting is 0.1mm.
3. What's The Cut Accuracy Of Multi-Wire Saws?
±10μm. It's subject to the cut material, please consult us for actual data.
4. Which Countries The Equipments Have Been Exported To?
The USA, UK, Russia, Japan, Brazil, Korea, India, Singapore, Taiwan of CHINA.

---
