Qk1330 Big Bore Spindle CNC Lathe Heavy Duty Pipe Threading Lathe

Product Description

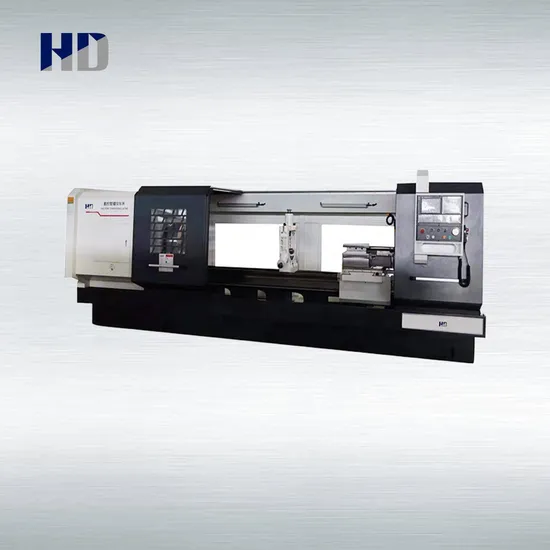

Product Picture
Specification Parameter

Specification		Unit	QK1325	QK1327	QK1330
Max. swing over bed dia.		mm	800	800	800
Max. swing over cross slide dia.		mm	540	480	480
Max. length of workpiece		mm	1500/3000
Width of bed		mm	550	600	600
Spindle bore		mm	255	280	305
Power of spindle motor		kw	11	15	15
Mode of spindle speed		/	Two gears, stepless in gears
Spindle speed range		r/min	L: 15-100 H: 100-350	L: 20-100 H: 100-300	L: 20-100 H: 100-300
X/Z axis travel		mm		X:450 Z:1250	X:450 Z:1250
X/Z rapid traverse speed		mm/min	4000	4000	4000
X axis motor	Speed	r/min	1500	1500	1500
	Torque	N.m	10	15/18	15/18
	Power	kw	2.8	2.8	2.8
Z axis motor	Speed	r/min	1500	1500	1500
	Torque	N.m	15	18/22	18/22
	Power	kw	3.8	3.8	3.8
Tailstock quill	Diameter	mm	100	100	100
	Travel	mm	250	250	250
	Taper	/	Morse 5	Morse 6	Morse 6
Turret	Type		Vertical four station
Chuck			K72-630 4 jaw chuck
CNC control system			GSK, FANUC, SIEMENS
Positioning accuracy		mm	0.02
Repeatability		mm	0.01
Overall dimension		mm	3700*2000*1800	4000*2100*2100	4000*2100*2100
Net weight		T	6	7	7.5

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
