Basic Info.
Guide Rail
Horizontal Guide Rail
Tool Holder
4/6/8 Positon Tool Turret
Automatic Grade
Automatic
Certification
GS, CE, ISO 9001
Max. Swing Over Carriage
190mm
Length of Work Piece
500/750/1000mm
Max. Size of Tool Post
20*20mm
Spindle Speed
150-2500rpm
Transport Package
Wooden Package
Specification
CE, SGS, ISO
Production Capacity
35 PCS/ Mounth
Product Description

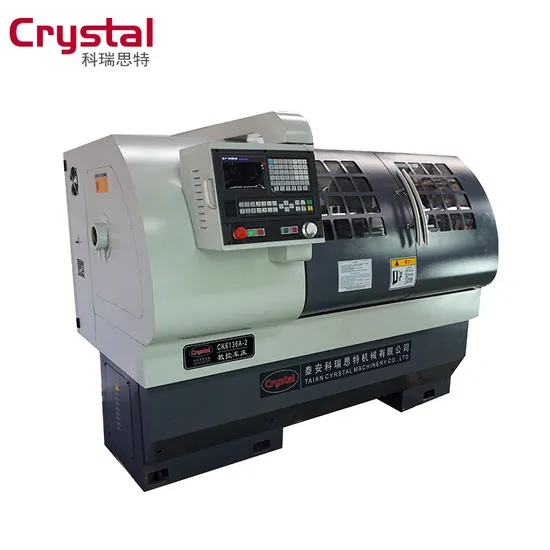

new cnc machines tools for sale CK6136A-1
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Main Features:
1.Frequency conversion stepless speed regulation
2.Higher working efficiency
3.Higher rigidity cast iron
4.Fully enclosed-safety
Standard Configurations
cnc lathe machine |
CK6136A |
Max. swim over bed |
Φ360mm |
Max. swim over carriage |
Φ190mm |
Max. length of work piece | 500/750/1000mm |
Width of the machine |
330mm |
Size of three-jaw chuck |
200mm |
Range of spindle speed |
150-2500rpm |
Spindle bore |
Φ60mm |
Taper of spindle bore |
MT4 |
Stations of tool carrier |
4/6/8 station tool turret |
Max size of tool post |
20x20mm |
Min. setting unit of motor |
(Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post |
(Z) long 8m/min,(X) cross 4m/min |
Taper of tailstock quill |
MT4 |
Max. range of tailstock quill |
120mm |
Motor power |
5.5KW |
Packing size(length ×width × height) |
1850/2120/2370 mm×1400 mm×1700mm |
Net weight |
1500/1650/1750kg |
Standard configuration:
1. System:GSK-928TDL
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
8. 3 phase 380v 50Hz
Optional configuration:
1.Siemens system /Fanuc system
2.Hydraulic chuck/ pneumatic chuck
3.Hydraulic tailstock/ pneumatic tailstock
4.6-piece electric tool post/8- piece electric tool post/ Gang type tool
5.Auto bar feeder
>>
