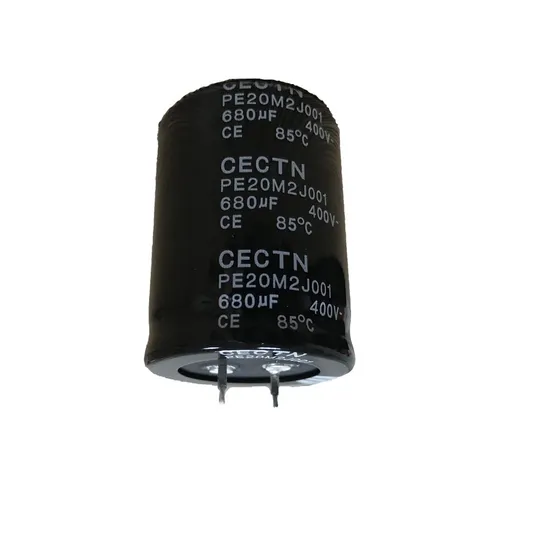

Cectn 400V 680UF Horn Capacitor

US$0.19 1 Piece (MOQ)

Basic Info.

Model NO.
400V 680uf
Packaging Type
Through Hole
Capacitance
680UF
Structure
Fixed Capacitor
Manufacturing Material
Electrolytic
Electrolyte
Electrolytic
Usage
Low Frequency Coupling, High Frequency Coupling, Tuning, Filter
Tuning
Polystyrene Capacitor
Filter
Aluminum Electrolytic Capacitor
Rated Voltage
400V
Rated Capacity
680UF
Temperature
85ºC
Service Life
2000h
Rated Voltage (V.DC)
400
Surge Voltage (V.DC)
440
Rated Capacity (μf)
680
Capacity Deviation (%)
-20~+20
Loss Tangent (Max)
0.15
ESR Typical Value (MΩ)
140.5
Transport Package
Standard Export Packing
Specification
Depends on voltage
Trademark
CECTN
Origin
China
HS Code
8504409999
Production Capacity
2000 PCS Per Month

Product Description

CECTN 400V 6800uf Capacitor


1.Basic parameters
Rated voltage 400V Rated Capacity 680uF
Temperature 85ºC Service life 2000h
Packing quantity 150pcs/Ctn Package size 35*50mm

2.Performance parameters
Rated voltage
(V.DC)		 Surge voltage
(V.DC)		 Rated Capacity
(μF)		 Capacity deviation
(%)		 Loss tangent
(MAX)		 ESR typical value
(mΩ)		 Leakage current
mA , MAX, 5min		 Rated ripple current
(A)
400 440 680 -20~+20 0.15 140.5 1.565 2.6
At 120Hz 20ºC 85ºC 120Hz
Climate Category Environmental Category : 25/085/56

3.Size introduction
D: 35mm L: 50±2.5mm L1:6.0±1mm Pitch: 10±0.1mm

4.Horn angle electrolytic capacitor sleeve description
5.Internal structure
6.Horn angle electrolytic capacitor sleeve description:
7.Description of the bottom code of horn type aluminum electrolytic capacitor:
8.400V680uf horn electrolytic capacitor printing information
9.Horn angle aluminum electrolytic capacitor packaging instructions
10.Production Process
