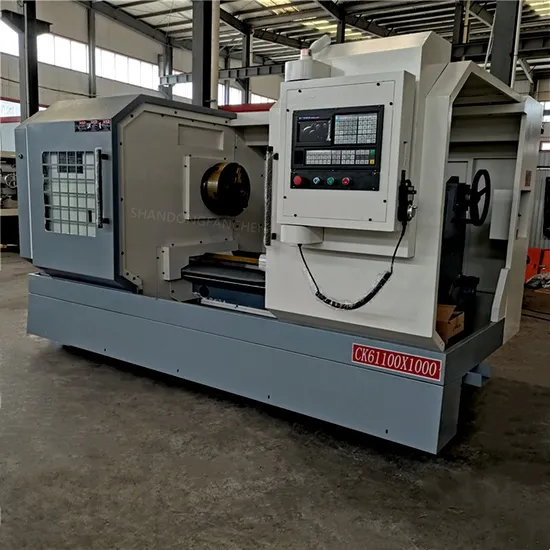

Large Ck61100 Horizontal CNC Lathe Automatic Heavy Cutting Precision

US$20,000.00-31,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
61100
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
630
Maximum Working Length
1500/2000/3000
Tool Rest Form
Electric Four-Station
Machining Accuracy
High
Inner Diameter of Spindle Through Hole
Φ130
Diameter of Rotation on The Plate
900
Spindle Drive Form
Three Speed Endless Shift
Principal Axis Series
Four Speed Endless Transmission
Servo Motor
15
Swing Diameter on Skateboard
650
Transport Package
Wooden
Specification
2600× 1500× 1650
Trademark
FANCHEN
Origin
China
Production Capacity
10

Packaging & Delivery

Package Size
300.00cm * 160.00cm * 170.00cm
Package Gross Weight
3500.000kg

Product Description


argument unit CAK61100
Guide span mm 550
Maximum workpiece length mm 1500 2000 3000
Maximum turning length mm 1350 1850 2850
Swing diameter on skateboard mm 650
Chuck form (manual) mm 400
Spindle through hole diameter mm 105
Repositioning accuracy of tool holder transposition mm 0.008"
X-axis travel mm 500
Spindle speed gear mm Fourth gear 17-1000
Workpiece accuracy IT6-IT7
Workpiece surface roughness Ra1.6
Tailgate sleeve diameter/stroke mm 130/250
Taper of tailstock taper hole 6Six Mohs
Tool rest form Vertical four-station
Motor power kw 15
Bed rotation diameter mm 630

1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
