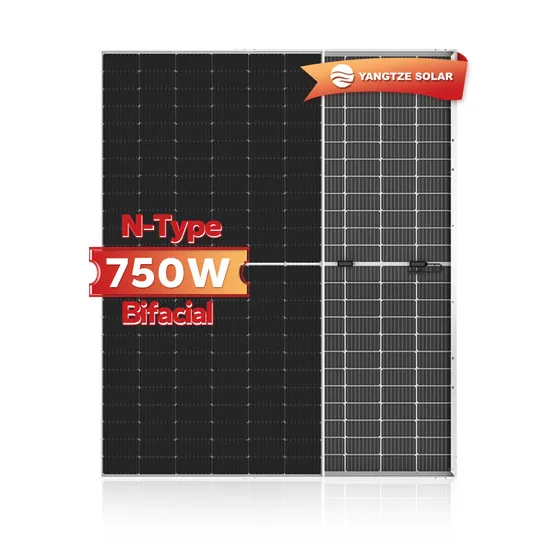

700W 750W Bifacial N-Type PV Solar Panel with Half Cell and Hjt Topcon Double Glass Technology

Product Description

Details

Model Type	YS710M-132	YS720M-132	YS730M-132	YS740M-132	YS750M-132
Rated Maximum Power at STC	710W	720W	730W	740W	750W
Maximum Power Voltage (Vmp)	40.48V	40.86V	41.04V	41.34V	41.52V
Maximum Power Current (Imp)	17.54A	17.62A	17.78A	17.9A	18.06A
Open Circuit Voltage ( Voc)	45.55V	45.85V	46.15V	46.45V	46.75V
Short Circuit Current (Isc)	18.45A	18.54A	18.66A	18.79A	18.92A
Module Efficiency	22.85%	23.17%	23.5%	23.82%	24.14%
Working Conditions&Working Conditions
Operating Temperature		-40°c~+85°c
Maximum System Voltage		DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse		25A
Power Tolerance		0~+5W
Temperature Coefficient of Pmax		-0.35%/°c
Temperature Coefficient of Voc		-0.29%/°c
Temperature Coefficient of Isc		+0.048%/°c
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S

Factory
***** Factory Introduction *****
♦ Founded in 1994 , 300MW solar panel production capacity ,solar panel power range 3watt to 510watt for both polycrystalline and monocrystalline solar panel
♦ 10 years total workmanship and materials warranty , 10 years for at least 90% and 25 years for 80% linear power output warranty
♦ 100% EL test before package and shipping
♦ Two factories , solar panel factory , battery factory
♦ Cooperated with world famous big companies like Jinko Solar , SMA ,Tesla , HUAWEI
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
Packages
Certificate
Visiting and Exhibition
