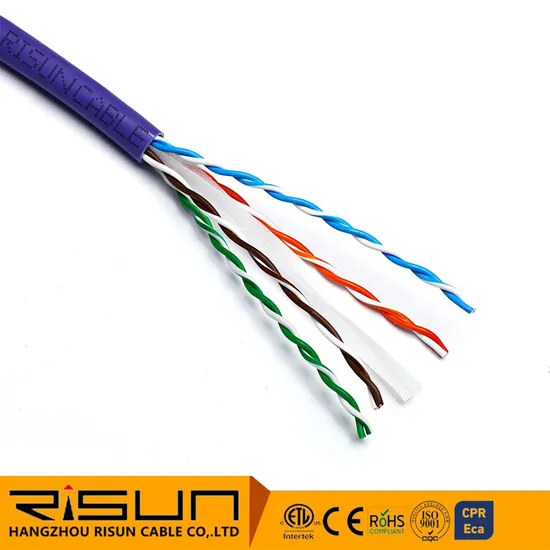

4X2X23AWG PVC CAT6 UTP Cable Copper Communication LAN Network Cable 1000FT Eca

Product Description

Product Description
4X2X23AWG PVC CAT6 UTP Cable Copper Communication LAN Network Cable 1000FT Eca
Configuration:
Manufactured according to ISO / IEC 11801, EIA / TIA-568-C.2, EN 50288-4-1 and IEC 61156-5.

Conductor	0.56±0.02mm(23AWG) Bare copper
Insulation	1.00±0.02mm HDPE
Cores/Pairs	8/4
Sheath	PVC
Options	Jelly Compound
Jacket	UV, FR, RoHS complied.

TECHNICAL SPECIFICATIONS:

Conductor	Bare copper : 0,56±0.02 mm
Insulation	HDPE : 1.00±0.02 mm
Identification of pairs	1 pair Blue - White / Blue 2 pair Orange - White / Orange 3 pair Green - White / Green 4 pair Brown - White / Brown
Filler	Yes
Ripcord	Yes
Sheath	PVC
Color	According to request
Bending radius	≥ 8 x Diameter (mm) Installation
Storage temperature	- 15ºC-+70ºC

ELECTRICAL CHARACTERISTICS:

nº Pairs.xФmm	Conductor Resistance Ω/km	Resistance Unbalance	Cap. between cond. pair nF / 100m	Velocity of Propagation %	Impendance Ω
4x2x23AWG	max.75	max.5%	56	69	100±15

Frequency (MHz)	Return Loss >=dB	ATT <=dB/100m	Next >=dB	DELAY <=ns100m	PS NEXT >=dB	EL FEXT <=dB/100m	PS EL FEXT >=dB/100m
1	20.0	2.03	74.3	570.0	72.3	67.8	64.8
4	23.0	3.78	65.3	552.0	63.3	55.8	52.8
8	24.5	5.32	60.8	546.73	58.8	49.7	46.7
10	25.0	5.95	59.3	545.38	57.3	47.8	44.8
16	25.0	7.55	56.2	543.0	54.2	43.7	40.7
20	25.0	8.47	54.8	542.05	52.8	41.8	38.8
25	24.3	9.51	53.3	541.20	41.3	39.8	36.8
31.25	23.6	10.67	51.9	540.44	49.9	37.9	34.9
62.5	21.5	15.38	47.7	538.55	45.4	31.9	28.9
100	20.1	19.80	44.3	537.60	42.3	27.8	24.8
200	18.0	28.98	39.8	536.54	37.8	21.8	18.8
250	17.3	32.85	38.3	536.27	36.3	19.8	16.8

REACTION TO FIRE CLASSIFICATION:
CPR Euroclass: Eca; CPR UKCA Class: Eca
APPLIANCE:
Cable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities. Packaging & Shipping
Company Profile
Risun is a manufacturer and exporter of high quality Lan cable/Network cable,coaxial cable, alarm cable and telephone cable in China.
95% of our goods for the export market. 17 years of experience in this field makes us very familiar with export handling.
We have customer in more than 40 countries all over the world.
In the past 17 years, we have already get ETL, CE, Rohs, ISO9001 certification. Certifications
Related Products
FAQ
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?A: We are factory.
Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.
Q3: DO YOU PROVIDE SAMPLES ?
A: Yes,we greatly welcome you to test our product and check quality. Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.
Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)
Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.
Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. We provide OEM services.Just notify us before production.
Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment≤60km, 100% in advance. Payment≥60km, 30% T/T in advance ,balance before shippment.

---
