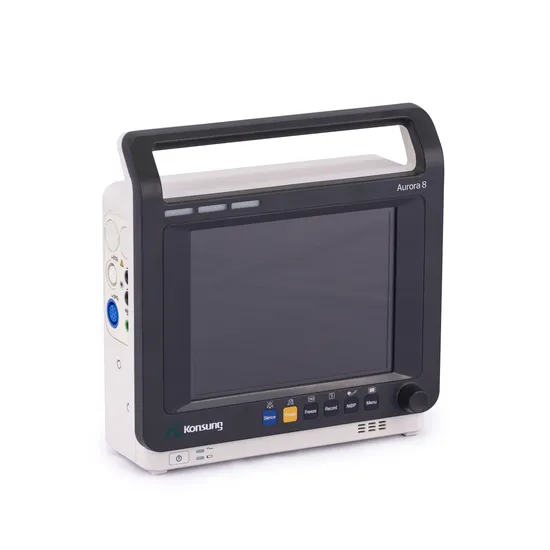

8.4-Inch Hot Selling Blood Pressure Breathing Veterinary Monitor with Lightweight

Product Description

Product Description:
Semi-plug in design. Multiple parameter modules plug and use meet different monitoring needs quickly.
There are warning, lamp flashing & tones alarm on patient monitor.
It offers a comfortable experience because the design of thin, and the thickness is only 8.9cm.
Waterproof import from OMRON company life upon 1,000,000 times. (domestic less than 500,000 times)
Industrial shuttle imported from Japanese ALPS company working life upon 1,000,000 times (domestic less than 100,000 times)
Adopted by design of interface hidden with dust cover, it assures the clean of key parts.
Semi-plug in design. Multiple parameter modules plug and use meet different monitoring needs quickly.
24 kinds of ARR events including sinus arrhythmia, various forms of PVCs, VFIB, VTAC, AFIB, Asystole...
Three blocks, neat and reasonable layout inside, good anti-interference performance and easy maintenance.
3 - 8 rows of display adjustment
Optional Parts:
Trolley
-The stand is made of high-quality aluminum alloy with max load of 25kg. It can be adjusted up and down, rotated left and right, and the pitch angle can be adjusted by 15 degrees. The replaceable slip plate design is applied for most of monitor with screw at the bottom
-The main body of this cart is made of high quality aluminum alloy and stainless steel material, which has good corrosion resistance.
-With lifting design, it can be used in different heights.
-Full aluminum alloy material, against rust.
-Plug-in plate, 360-degree rotation in horizontal direction supported, up &down 15-degree angle adjustment allowed.
-30cm wall channel, convenient to raise or lower the equipment.
-With square accessories basket.
Technique Parameters

Standard configuration
Screen
Display Type	12.1" color TFT LCD
Resolution	800×600 pixels
Waveforms	Up to 7
ECG
Input	3/5 wire ECG cable
Lead section	I II III aVR, aVL, aVF, V
Gain selection	*0.25, *0.5, *1, *1.2
Sweep speed	6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart rate range	15-30bpm
Calibration	±1mv
Accuracy	±1bpm or ±1% (select the bigger data)
NIBP
Test method	Oscillometer
Philosophy	Adult, Pediatric and Neonate
Measurement type	Systolic Diastolic Mean
Measurement parameter	Automatic, Continuous measurement
Measurement method Manual	mmHg or ±2%
SPO2
Display Type	Waveform, Data
Measurement range	0-100%
Accuracy	±3% (between 70%-100%)
Pulse rate range	20-300bpm
Accuracy	±1bpm or ±2% (select the bigger data)
Resolution	1bpm
2-Temperature (Rectal & Surface)
Number of channels	2 channels
Measurement range	0-50ºC
Accuracy	±0.2ºC
Display	T1, T2, T
Unit	ºC/ºF selection
Refresh cycle	1s-2s
Respiration (Impedance & Nasal Tube)
Measurement type	0-150rpm
Accuracy	±1bm or ±5%, select the bigger data
Resolution	1rpm
Optional configuration
EtCO2-Plug & Play
Measurement type	Side stream
Measurement range	0-10.0%; 0-76mmHg
Accuracy	<5.0%, ±0.28kPa; ±2mmHg
	>5.0%, ±10%
2-IBP (optional)
Measurement range	10~300mmHg
Number of channels	1 or 2 channels
Accuracy	±1mmHg or ±2%, select bigger data
Pressure tag	ART, CVT, RVP, LAP, RAP, PAP, ICP, LVP
12 leads ECG (optional)
Input	3/5/10 wires ECG cable
Lead section	I, II, III aVR, aVL, aVF, V(V1-V6)
Heart rate range	15-380bpm
Calibration	±1mv

FAQ
1.Can the accessories be exchanged between both Aurora and Aurora S series?
Yes, it is possible to use the same accessories across both Aurora and Aurora S.
2. Can the monitors display waveforms and numerical data?
Yes, both monitors of Aurora and Aurora S can display waveforms and numerical data.
3. How many waveforms can be displayed on the screen?
The screen can display up to a maximum of 8 waveforms.
4. Are the batteries a cost option?
No, the battery is included in the basic price of the system.
5. What types of batteries are used?
Both systems use a high capacity built-in rechargeable lithium battery.
6.Can the monitors connect to printer?
Aurora series cannot connect to printer, and Aurora S series can connect to printer.
7. Can the monitors support Wifi?
Both of Aurora and Aurora S series can support to Wifi?
8. Which kind of options parts can you offer?
We can offer touch screen, IBP, 2IBP, EtcO2, Printer, wall mount and trolley.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

---
