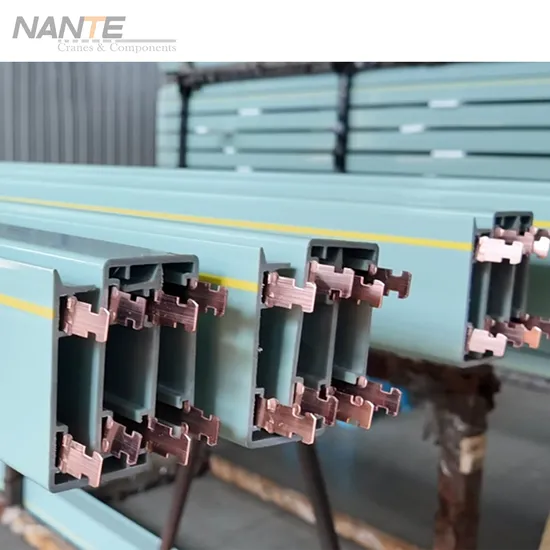

4 Poles Copper Bus Bar Power Track System for Gantry Cranes

Product Description

Insulation Enclosed Overhead Crane Bus bar Power Rail Conductor Bus Bar Systems
Product Description
A crane conductor rail is a power supply system that provides electricity to overhead cranes, gantry cranes, and suspension cranes. It's also known as a power rail.
Design features
1.The housing is made by high quality PVC with low calcium powder, good shape and long service life.
2.The conductor is 99.9999% (T3 level) purity cooper
3.The current collector is made by reforced Nylon and high quality cooper-graphite brush, good for conductivity and long service life.
4.The joint box and end feed is made by reforced plastic, strong and durable.
5.The hardware like hanger, towing arm are made by cold plate, and galvanized, ensure long-term use without rust
Advantages
Safety Focused: Designed with safety as a top priority for low and medium current applications.
Flexible Current Range: Handles a wide range of current capacities, making it adaptable to various needs.
Dependable Performance: Engineered for high reliability, ensuring consistent operation.
Simplified Setup and Upkeep: Easy to install and maintain, saving time and resources.
Variety of Options: Available in multiple configurations (HFP56, HFP52, HFP95) with differing pole counts and current capacities to meet specific requirements.
Tailored Solutions: Offers customization options like curved tracks, color choices, and dustproof strips to accommodate unique site conditions and customer preferences. Application
Overhead cranes
Gantry cranes
Jib Cranes
Workshop cranes
Light hoisting gear
Workplace equipment
Product Parameters

Model	Pole No.	Cross section	Max. current	Leakage-distance	Max. voltage	Resistance	Dimensions (H * W)	Weight
HFP56-4-8/35	4	8	35	35	600	1.944	73*56	2.09
HFP56-4-10/50	4	10	50	35	600	1.656	73*56	2.16
HFP56-4-12/65	4	12	65	35	600	1.321	73*56	2.23
HFP56-4-15/80	4	15	80	35	600	1.137	73*56	2.3
HFP56-4-20/100	4	20	100	33	600	1.011	73*56	2.43
HFP56-4-25/120	4	25	120	33	600	0.713	73*56	2.56
HFP56-4-35/140	4	35	140	33	600	0.522	73*56	2.95
HFP56-4-50/170	4	50	170	33	600	0.337	73*56	3.25
HFP56-4-70/210	4	70	210	33	600	0.265	73*56	3.85
HFP56-4-80/240	4	80	240	30	600	0.223	73*56	4.16
HFP56-3-10/50	3	10	50	45	600	1.656	73*56	1.95
HFP56-3-15/80	3	15	80	45	600	1.137	73*56	2.13
HFP56-3-20/100	3	20	100	45	600	1.011	73*56	2.24
HFP56-3-25/120	3	25	120	45	600	0.713	73*56	2.37
HFP56-3-35/140	3	35	140	45	600	0.522	73*56	2.63
HFP56-3-50/170	3	50	170	45	600	0.337	73*56	3.02

Company Profile
FAQ
Q1: Are you Manufacturer or Trading Company?A1:We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.Q2: Which standard of your crane and crane components apply to?A2: Our Crane can design and manufacture base on FEM, CMAA, ISO EN, GB standard.Q3: How do you ensure your product quality?A3: All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.Q4: How can I make payment?A4: We accept T/T bank transfer, L/C, Paypal.Q5: How can I assembly the cranes in my factory?A5: We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.Q6: What is the warranty period, and how can I claim warranty If my crane have any issue?A6: Our warranty period is 12 months after cargo leave China port. If the crane have any issue, our after-sales team and engineer will help you solve the issue by email or Video conference. If the defect is caused by quality issue, we will ship the spare parts to you by air to help you fixed it as soon as possible.Q7: Do you accept OEM business?A7: Sure, we do many OEM productions for some famous crane brand and customers around the world.Q8: What about shipping?A8: We recommend small batch by the way of air or LCL, but large delivery by the way of container or bulk vessel.Q9: What about delivery time?A9: Different capacity crane and components have different estimated delivery time, generally speaking, around 4 weeks to 8 weeks.Q10: What is your company policy if we want to distribute NANTE product in our market?A10: Firstly, thank you for your interest to promote NANTE brand, we have distributors in 50+ countries, pleaes no hesitate to contact us for the detail discussions, as we have different policies for the different target markets. Surely, you are welcomed to visit our factory and let's talk face to face.

---
