Fiber Optics Splicing Machine Skycom T-307h

Product Description

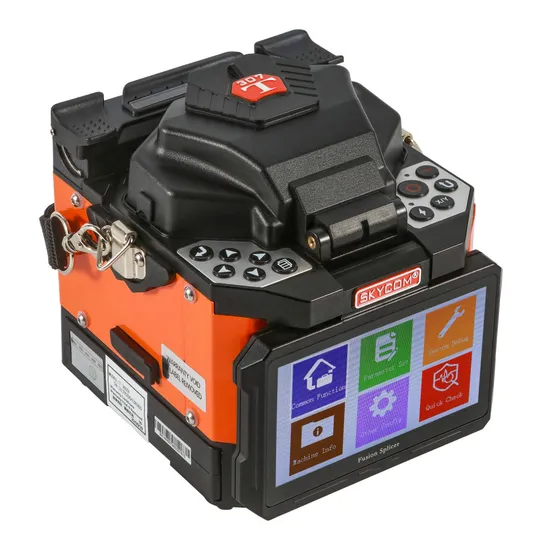

SKYCOM Hi-Precision Digital Fusion Splicer
T-307H Description
> Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
> We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SKYCOM T- 307 are our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.
Key Features:
1>Typical splicing time: 9 seconds
2>Typical Quick time: 18 seconds 3> More Portable design
Specifications

Model			Skycom T-307H
Monitor			4.3 inches TFT high resolution colorful LCD display
Fiber Image Magnification			X or Y Separately 520 times or Simultaneously 200 times
Applicable Fibers			G.651, G.652, G.653, G.655, G.657
Average Splice Loss			G.652: 0.02dB G.651 : 0.01dB G.655 : 0.04dB
Return Loss			≥60dB
Typical splicing time			9 seconds
Fast mode time			8 seconds
Typical heating time			25 seconds
Protection Sleeve Length			40mm, 45mm, 60mm
Splicing Program			50 preset and user programmable modes
Heating Program			10 heating modes
Operating Language			Chinese, English, French, Portuguese, Spanish, Italian, Indonesian
Operating Conditions			-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply	AC input		AC adaptor: 100~240V input voltage, 50/60Hz;
	DC input		12V, 5A output voltage(DC)
	Battery		Inner lithium battery: 11.1V, 5.2 AH, Up to 180 times splice and heat
Estimated Splice Loss			Available
Cleaving Angle Detection			Available
Automatic Self-Check		Camera	Available
		Forward Motor
Tension Test			1.96~2.25N
Storage of Splice Result			6,000 groups of latest splice results
Splicing Model			Auto & Manual & Full Auto & Stepping
Optical Fiber Fixture			3-in-1 cutting fixture; Multipurpose 1+N fixture (for SC/LC/FC connector)
Terminal			USB for Memorizing and Updating
Dimensions			120(W)*120(D)*130(H)mm
Weight			1.25kg+0.34kg (battery weight)=1.59kg;

Standard Accessories

No.	Item	Quantity
1	Machine T-307	1
2	Fiber Cleaver	1
3	Fiber Stripper	1
4	AC Adaptor (Charger)	1
5	Battery	1
6	Spare Electrodes	1
7	Cooling Tray	1
8	Instruction CD	1
9	Quick Reference Guide	1
10	Rubber-insulated wire stripping pliers	1
11	Rubber-insulated wire 3-in-1 cutting fixture	1
12	Carrying Case with Carrying Strap	1

*Custom-made Professional anti-shock tool kit (case) with sponge inside
*Export-standard Carton Box with PE Foam inside (43*32.5*26.5cm)
*Carrying box color: Yellow or Green

FAQ
1.Are you a manufacture or trade company? We are the manufacture with 10 year's history still 2020 2.What is your product's brand? Our product's brand is SKYCOM 3.What is your main products? Our main product is Fusion Splicer, OTDR, some fiber tools 4.How can we place order? After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your payment, we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods, if you don't have the ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost. 5. What is the quality for your product? All of our productsare with high quality, Our customers from Asia, South America, North America,EU, Africa. We also serve for China Unicom, China Telecom, China Mobile 6. How do you arrange the shipping? They are two types of shipping methods available, by sea and by air(Express courier-Fedex/DHL/UPS/TNT/EMS,we can ship them according to your express account or ship them by our agent company,the delivery time is about 7 working days. 7. Why choose SKYCOM to cooperate? We have first-class production line and strict quality management system. We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment. We can provide the most competitive price to meet your budget. We also design and innovation the new products based on our rich experience. We have professional team to provide comprehensive one-stop service for you.

---
