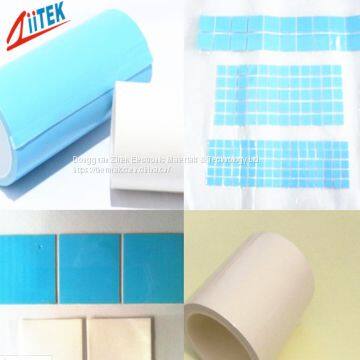

Instead of Mechanical Fixing Adhesive thermal conductive tape with Fiberglass for LED Controller

Product Details

Product Description

Product Description
Instead of Mechanical Fixing Adhesive thermal conductive tape with Fiberglass for LED Controller

The TIA™812FG Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.
Features
Thermal Conductivity: 0.8 W/mK
High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
High performance, thermally conductive acrylic adhesive
Applications
Mount heat sink onto BGA graphic processor or drive processor
LED Controller
Mount heat spreader onto power converter PCB or onto motor control PCB
High performance
Can be used instead of heat cure adhesive,screw mounting or clip mounting

Typical Properties of TIA™812FG Series
Product name	TIATM812FG
Color	White
Adhesive Type	Acrylic Adhesive
Backing type	Glass fiber
Continuous use temp	-45℃~﹢120℃
Thickness	0.012''(0.304 mm)
Voltage breakdown	>4200 Vac
Thermal conductivity	0.8 W/mK
180° peel adhesion	>1000 g/inch (Steel, immediate)
180° peel adhesion	>1200 g/inch (Steel after 24 hrs)
Holding power (25℃/Hours)	>48 hours
Holding power (80℃/Hours)	>48 hours

---
