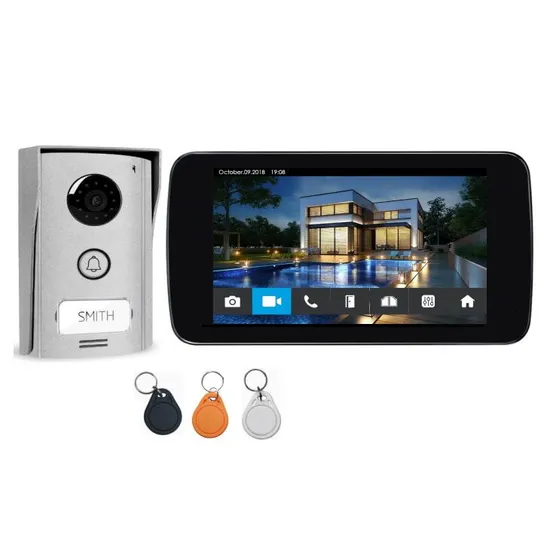

Touch Screen Video Doorphone 7" Picture Capture & Video Recording

Product Description

Input Power Supply	AC 100V-240V / 50-60Hz
Output Power Supply	15 V DC 0.8A
Screen	7 inch TFT LCD touch screen
LCD resolution	800(RGB) x 480
Number of connecting cables	2 wire
Cable requirement	0~50m: 0.75mm2 ; 0~100m: 1mm2
Power consumption	≤2.7W (when standby); ≤9W (when working)
Memory capacity (photos)	Build-in memory (14MB) when full the newest photo will automatically overwrite the oldest one
Melody	6 melodies
Material	ABS
Working temperature range	0°C ~ +50°C
Installation	Wall-mounted
Dimensions (H x W x D)	218 x 112 x 25 mm

Functions and Instructions 1) Calling 1.1 Under the standby mode, when "Call" of Outdoor Unit is tapped, all of the indoor units will be ringing continuously; all screens will light up; and visitors' images can be seen on the screens.
1.2 Under the calling mode, when there is no answer, the call will be automatically hung up after 60s.
1.3 Under the calling mode, when "Answer" of any of the indoor units is tapped, the ring will stop, the other indoor units will be off and the intercom mode will start in which a two-way intercom of 120s can be made between the indoor and outdoor units. To stop the intercom in advance, tap "Home" of the indoor unit; the intercom will be off and the standby mode will start. Otherwise the intercom will be automatically hung up after 60s.
2) Monitoring 2.1 Under the standby mode, tap "Monitor" and then "Answer"of any of the indoor units, a two-way intercom between the indoor and outdoor units can be made.
2.2 Under the standby mode, tap "Monitor" of any of the indoor units, the screen will light up, through which the images of Outdoor Unit can be seen. At this time, only one-way conversation is available (from the outdoor unit to the indoor unit).
To start a two-way intercom, tap "Answer" of the indoor unit.
To stop the monitoring mode in advance, tap "Hang up"/"Home" of the indoor unit (tap "Hang up" to make the intercom and screen off simultaneously;
Tap "Home" to return to Home Screen, which will be off after 60s). Otherwise the intercom will be automatically hung up after 90s. 3) Unlocking 3.1 Under the intercom mode, push "Unlock the door" Button of the indoor unit to open the door(electric lock), with the unlocking current being 1A or below and the unlocking time being 1s or below.
3.2 Under the intercom mode, push "Unlock the Gate" Button of the indoor unit to open the gate, with the unlocking time being 3s.
4) Intercom between Indoor Units (This function only applies to one outdoor unit with two indoor units)
4.1 Under the standby mode, when "Intercom" Button of Indoor Unit A is pushed, Indoor Unit B will be ringing for 12s; the screens of both indoor units will light up and turn blue with no images. 4.2 After "Intercom" Button of Indoor Unit A is pushed, Indoor Unit B will be ringing for 12s. If there is no answer from Indoor Unit B, the call will be automatically hung up after 60s 4.3 After "Intercom" Button of Indoor Unit A is pushed, the ring will stop and the intercom will start when "Answer" Button of Indoor Unit B is pushed. To stop the intercom, push "Hang up" Button of either of the indoor units; the intercom and the screens will be off simultaneously. Otherwise the intercom will be automatically hung up after 100s. (Timekeeping starts from answering) 4.4 After "Intercom" Button of either of the indoor units is pushed, push "Hang up" Button to cancel the call and both of the indoor units will be off simultaneously.
5) Silent Mode
5.1 When "Silent" of the indoor unit is tapped, the icon will turn white. At this time, when the outdoor unit is triggered, the indoor unit will not be ringing. When "Silent" of the indoor unit is tapped again, the icon will turn blue and the silent mode will be canceled.
6) Viewing Photos
6.1 Tap "Photos" on Home Screen to view photos list, from which you can know the exact shooting time of the each photo.
6.2 Tap "Page Up/Down" on Photos Screen to view different photos lists.
6.3 To exit, tap "Return".
6.4 To delete photos, tap "Delete".
7) Viewing Videos
7.1 Tap "Videos" on Home Screen to view videos list, from which you can know the exact shooting time of each video.
7.2 Tap "Page Up/Down" on Videos Screen to view different videos lists.
7.3 To exit, tap "Return".
7.4 To delete videos, tap "Delete".
Wiring diagram

---
