US$670.00-895.00
|
1 Set
(MOQ)
|
Basic Info.
Connection Type
Conusb Device, USB Host, LAN, Gpib (Optionatact Us
Range Conversion Type
Contact Us
Additional Measuring Item
Contact Us
Interface
USB Device, USB Host, LAN, Gpib (Optional)
Screen Resolution
480 * 272
Transport Package
Moisture-Proof and Anti-Collision
Packaging & Delivery
Package Size
50.00cm * 30.00cm * 20.00cm
Package Gross Weight
10.000kg
Product Description
Product Description

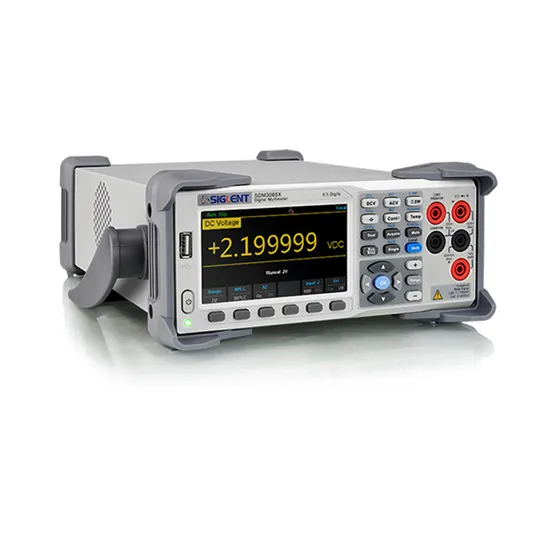

SDM3065X 6 ½ Digits Dual-Display Digital Multimeters Product Overview SIGLENT SDM3065X and SDM3065X-SC Digital Multimeters are a 6 ½ digit DMM (digital multimeter with 2,200,000 counts) incorporating a dual-display. The SDM3065X series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.
The SIGLENT SDM3065X-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP ( RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.
NOTE: The scanner is included on new SDM3065X-SC products only. It cannot be added to SDM3065X instruments at a later time.
Key Features Real 6½ digits readings resolution (2,200,000 counts) 1 Gb Nand flash size, Mass storage configuration files and data files True-RMS AC Voltage and AC Current measuring Standard interfaces: USB Device, USB Host, LAN (Optional Accessories: USB-GPIB Adapter) Optional Scanner for multipoint measurements (-SC part number)
Quick selection :
| Model | Reading Resolution | DC Voltage Accuracy in a Year | DC Voltage Measurement Range | AC Voltage Measurement Range | DC Current Measurement Range | Scanner Card |
| SDM3065X | 6 1/2 | 0.0035% of reading + 0.0006% of range | 200 mV-1000 V | 200 mV-750 V | 200 µA-10 A | No |
| SDM3065X-SC | 6 1/2 | 0.0035% of reading + 0.0006% of range | 200 mV-1000 V | 200 mV-750 V | 200 µA-10 A | Yes |
Supports double display, Chinese and English Menu File management (support for U-disc and local storage) Built-in cold terminal compensation for thermocouple Comes with easy, convenient and flexible any sensor measurement control software :EasyDMM Math Function: Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Meter,etc. Detailed Photos
>>
