China Manufacturer Best Quality Aggregate Iron Gold Ore Rock Stone Spring Symons Cone Crusher Price

Product Description

Product Description

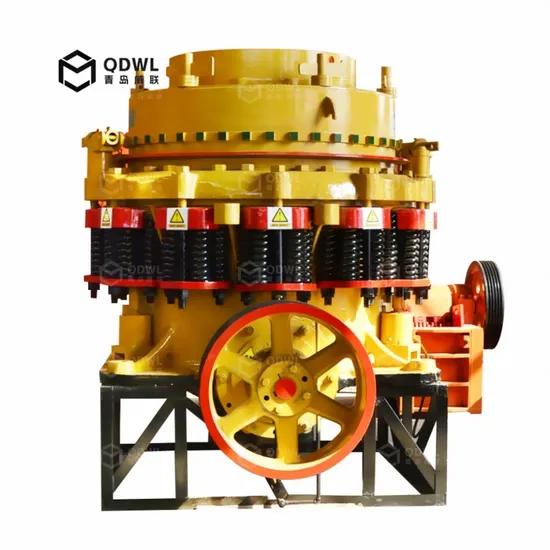

Compound Symons spring hydraulic basalt ore rock stone cone crusher
Simmons cone crusher is an improved, optimized and updated replacement product of spring cone crusher. Based on the principle of laminated crushing, it has developed into a modern high-performance cone crusher integrating high swing frequency, optimized cavity shape and reasonable stroke. CS cone crusher is suitable for various coarse, medium and fine materials whose compressive strength does not exceed 350MPa, such as river pebbles, granite, basalt, iron ore, shale, limestone, coal gangue, quartz, diabase, marble, copper ore, pebbles, etc.
Detailed Photos
The advantages
Symons Cone crusher is a compression type of stone crusher. The feeding rock is crushed by squeezing or compressing the feed material between a wear resistant mantle and a manganese concave or a bowl liner. The mantle is a moving part that gyrates in an eccentric motion though an eccentrically gyrating spindle.
When rock enters the top of the cone crusher, it is squeezed between the mantle and the bowl liner or concave, as the eccentric spindle rotates to cause the compression within the chamber. The material gets smaller as it moves down through the wear liner as the opening in the cavity gets tighter. Large pieces of ore are broken once, and then fall to a lower position where they are broken again. This process continues until the pieces are small enough to fall through the narrow opening at the bottom of the crusher. Final sizing and reduction is determined by the closed side setting or the gap between the two crushing members at the lowest point.
The Symons cone crusher is adjusted by spinning the bowl up or down manually or through hydraulic rams. A series of powerful springs give the necessary tramp protection without damage to the crusher.
Why choose Symons cone crusher?
1. Through the optimized design of the cavity and the combination of reasonable speed and stroke, CS cone crusher can perform the most work under the same diameter of the moving cone. Therefore, compared with the same type of spring cone crusher, it has higher performance and production capacity.
2. Based on the principle of lamination crushing, the proportion of cubes in the crushed s tone product is significantly increased, the needle-like stones are reduced, and the particle size is more uniform.
3. When unbreakable materials enter cone crusher crushing chamber, high-performance alloy steel springs are used as advanced overload protection system, it can effectively protect machine safety.
4. The automatic control system adopts large-diameter main shaft, heavy-duty main frame and independent thin oil lubrication system to ensure that the equipment is durable and reliable in operation.
Product Parameters
According to the size of the raw materials, the size of the output and the output of the machine, we will provide you with the appropriate crusher model. The specific parameters of each model are as follows. Please choose the crusher that suits you and I will provide you with detailed prices.
A. Standard Symons cone crusher parameters

Model	Crush chamber diameter		Cavity Type	Feed port size (mm)		Discharge port size (mm)	Power (kw)	Weight (ton)	Capacity (t/h)
	ft	mm		small side	big side
PYS910	3	914	Fine	83	102	9-22	75	14.64	10-100
PYS917			Middle	159	175	13-38			55-180
PYS918			Coarse	163	178	25-38			105-180
PYS1313	4.25	1295	Fine	109	137	18-31	155	25.86	100-200
PYS1321			Middle	188	210	16-38			118-280
PYS1324			Coarse	216	241	19-51			155-384
PYS1325			Extra coarse	218	259	25-51			212-390
PYS1620	5.5	1676	Fine	188	209	16-38	240	50.8	162-360
PYS1624			Middle	213	241	22-51			232-460
PYS1626			Coarse	241	269	25-64			270-698
PYS1636			Extra coarse	331	368	38-64			388-745
PYS2127	7	2134	Fine	253	278	19-38	380	89.5	344-798
PYS2133			Middle	303	334	25-51			550-1098
PYS2136			Coarse	334	369	31-64			710-1398
PYS2146			Extra coarse	425	460	38-64			800-1498

B.Short cavity model symons cone crusher parameters ( make fine mateiral than standard model)

Model	Crush chamber diameter		Cavity Type	Feed port size (mm)		Discharge port size (mm)	Power (kw)	Weight (ton)	Capacity (t/h)
	ft	mm		small side	big side
PYS904	3	914	Fine	13	41	3-13	75	14.64	24-100
PYS906			Middle	33	61	3-16			24-100
PYS907			Coarse	51	76	6-19			54-140
PYS1306	4.25	1295	Fine	29	64	3-16	155	25.86	32-180
PYS1308			Middle	54	89	6-16			74-180
PYS1310			Coarse	70	105	8-25			98-250
PYS1313			Extra coarse	98	133	16-25			188-260
PYS1607	5.5	1676	Fine	35	70	5-13	240	50.8	82-230
PYS1608			Middle	54	89	6-19			120-310
PYS1613			Coarse	98	133	10-25			170-370
PYS1614			Extra coarse	117	163	13-25			228-370
PYS2110	7	2134	Fine	51	105	5-16	380	89.5	172-450
PYS2113			Middle	95	132	10-19			318-560
PYS2117			Coarse	127	178	13-25			408-658
PYS2120			Extra coarse	152	203	16-25			530-718

In order to overcome the impact of the environment on the work, we can also install crushers, feeders, conveyor belts and other equipment on the axle to make a mobile crushing production line, which not only solves the problem for customers but also improves the efficiency of their production lines.
About us
Qingdao WL Heavy Industry is a large-scale enterprise specializing in R&D and manufacturing, with a plant area of 70 acres. The equipment provided by our factory includes: crushing and screening equipment, mobile sand making equipment and other mining machinery.
Our company is located in Qingdao City, Shandong Province of CHINA .
Our company's main products include mobile crushing stations and various jaw crushers, hammer crushers, cone glass crushers, impact crushers, sand making machines and other crushing and sand making equipment, as well as concrete equipment such as concrete mixing pumps, hydraulic feeders and other equipment
Our equipment is widely used in mining, construction, chemical industry, metallurgy, transportation, water conservancy and other industries.
FAQ
1. Are you a manufacturing?
We are a factory, established in 2001.
2. How long is your delivery time?
10-30 days, if we have the machine in the stock will provide to you with 10 days , if customizd machine will take 15--30days.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
1 year, we have spare parts in the stock can delivery to you within 3days.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.
6. Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
7.What about the Minimum Order Quantity?
A:The MOQ is 1 piece.
8. Installation:
If the buyer ask Hongwan company to send the technicians to guard to install the machines in the site, the buyer should take all the charges for the technicians and pay the salary.

---
