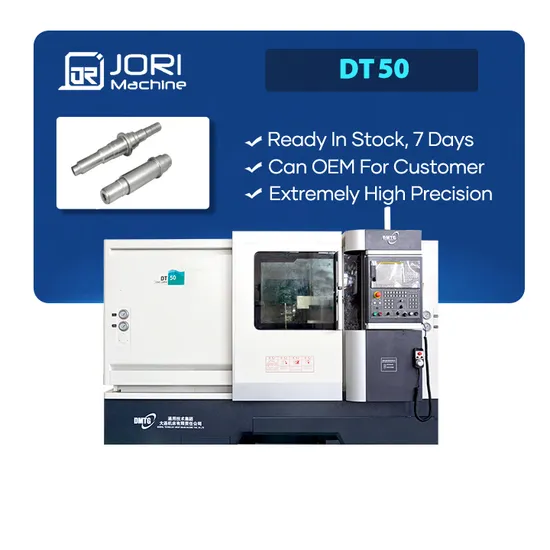

Digital Controlled Lathe Modern CNC Lathe for Metal

US$35,000.00
1-4 Pieces
US$30,000.00
5+ Pieces

Basic Info.

Model NO.
DT40
Process Usage
Metal-Forming CNC Machine Tools
Movement Method
Other
Control Method
Other
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Transport Package
Wooden Case Packing
Trademark
DMTG
Origin
Liaoning
Production Capacity
100 Sets/Month

Product Description

DMTG DT40 Dalian Machine Benchtop Automatic CNC Lathe Maquina Twin Spindles Slant Bed CNC Lathe Torno Cnc Turning Center
CAPACITY Swing over bed mm 580
Max. turning length mm 550,1055
Max. turning diameter ( shaft/ disc) mm 350
Guideway type Roller guide way
SPINDLE Chuck size Inch 8
Spindle nose ISOA2-6
Spindle bore mm 70
Spindle speed rpm 35-4000
Spindle motor power kw 11/15
Spindle torque Nm 105/140
Max bar diameter mm 51
TRAVEL X-axis travel mm 215
Z-axis travel mm 555/1055
X-axis rapid traverse m/min 30
Z-axis rapid traverse m/min 30
TOOL POST Turret type and tool number Hydraulic 12-station turret
Tool shank size mm 25x25
Indexing time(adjacent/farthest) s 0.31/0.78
TAILSTOCK Diameter of tailstock quill mm 50
Tailstock quill travel mm 140
