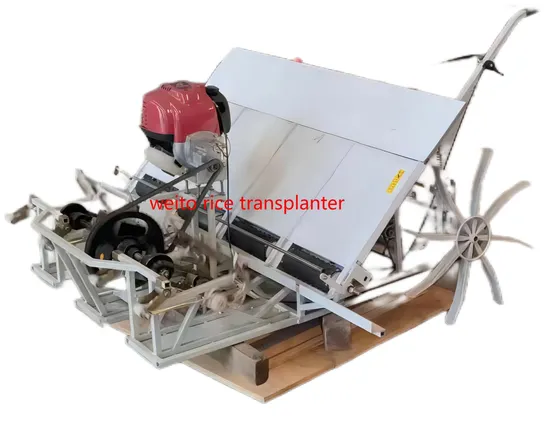

6 Rows Walking Rice Planting Machine Hand Operated Rice Trans Planter

Product Description

2ZS series Ecnomic hand held walking Rice Transplanter Product Technical Parameters

Handheld economical walking rice transplanter
model name				2ZS-6238	2ZS-4300
structure type				handheld walking tpye	handheld walking tpye
Engine		manufacturer		YLT	YLT
		Model		140F	140F
		Rated power (kW/HP)		1.2/1.63 HP	1.2/1.63HP
		rated speed (r/min)		6800	6800
Working state dimensions(l*w*h)				1850×1620×870mm	1850×1440×870mm
working speed (m/s)				0.28-0.77	0.28-0.77
working efficiency (hm²/h)				≤0.2	≤0.2
fuel consumption when working (kg/hm)				≤3.0	≤3.0
ROWS				6	4
rows space (mm)				238	300
Type of hole distance adjustment mechanism				Travel wheel adjustment	Travel wheel adjustment
Number of gear positions for hole distance adjustment (number)				0	0
hole distance ( mm )				200,250	200,250
Transplantation depth(cm)				3-10	3-10
Shift distance ( mm )				10.8,14,15.5,17,19.5	10.8,14,15.5,17,19.5
Seedling depth(mm)				7,8.5,10,11.5,13,14.5,16,17.5,19	7,8.5,10,11.5,13,14.5,16,17.5,19
Insertion rank/planting frequency (plants/minute)				260-1700	260-1700
Variable speed mode				gear	gear
travel wheel	front wheel		structure type	Blade iron wheel	Blade iron wheel
			diameter (mm)	φ600 φ510	φ600 φ510
	rear wheel		structure type	NO	NO
			diameter (mm)	NO	NO
Balance mechanism type				no	no
planting arm type				Crank rocker type	Crank rocker type
weight (kg)				80	75
package dimension L*W*H				1750×1230×650	1750×1230×650
Q'TY IN 20 GP				12	12

Feature 1 for walking type hand held economic type rice transplanter
This rice transplanter has a simple and compact structure;
One person can independently plant seedlings;
Compared to manual transplanting, it has high work efficiency and can reduce the speed of manual transplanting by 20 people; one person, one machine, capable of transplanting 5-6 acres(Chinese field units ,one acres =666.6 sm) of rice seedlings;
Lightweight, 50 kilograms; A person can easily move around;
Easy to operate, gasoline 140F single cylinder engine, manual start.
Low fuel consumption, cost-effective, time-saving, and fast.
Suitable for small plots of land or small paddy fields in mountainous areas.
Feature 2
Feature for high speed rice tansplanter
main parts photos:
2)Packing ,plywood package ,one set one package .
3) Quantity in 40HC :40 SETS in SKD WAY. WHOLE OF MACHINE 16 SETS
4.RICE TRANS PLANTER IN WORKSHOPS
5.WORKING SITE
6.Questions
how long is the warranty time ? it is 12 months since the date of B/L ;
how long is the delivery time ? it is about 20-30days normally since the date of 30% deposit.
what is the payment terms? the L/C at sight or Payment in Cash by T/T is acceptable .
what is the service life ?it is more than 8 years ,if the weeder has a good mantanence as the manual .
how to order the weeder ? if you need it ,contact with our business manager who will take you a good solutions as your requirements .
7.WEITO COOPERATION
We are looking forward to forming successful business relationships with the new clients around the world in the near future.
We are one of the fast growing companies in the field of power machinery, garden and small agricultural machinery. With over 12 years dedicated in the field, our company now becomes a professionally well-known brand with absolute advantage in R & D, marketing, and after-sale service in the field of general purpose power machinery and small agricultural machinery. Since the establishment of our company, we aim at providing the world with high quality products at competitive prices. We always use raw materials of high quality standard with improved processing instead of low quality which could not ensure the benefit of customers. For quality control, in order to ensure the quality of our products, we produce most of the die-casting parts and gears by ourselves. And meanwhile, we test each piece of our products before they are released to the market. Meanwhile, a well-educated and organized after-sale service team always provides professional maintenance, technical consultation and technical training.
We are always here looking for distributors from all over the world for mutual-beneficial cooperation.
All products provided 1 year warranty and spare parts are always available anytime after order. Also we provide OEM and ODM service.
Your inquires are always welcome and our sales team will reply you within 24hours.

---
