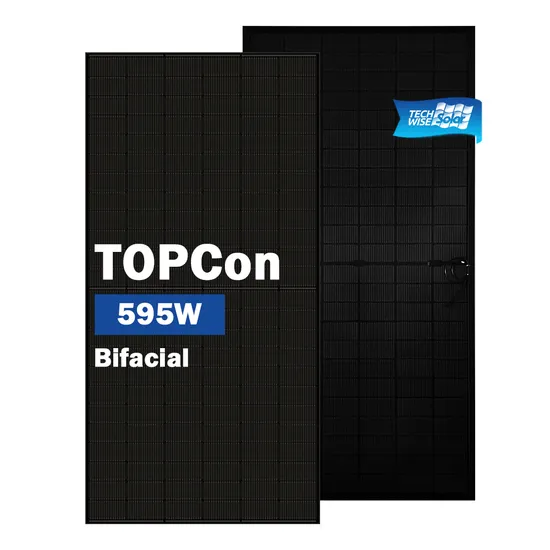

Tier 1 Factory Price Full Black Mono 580W 600W Bifacial Kit Solar Photovoltaic High Power Sun Solar Panel for Solar Energy System

Product Description

Product Parameters

STC standard performance >>>
Power Level	570	575	580	585	590	595
Pmax(W)	570	575	580	585	590	595
Vmp(V)	43.88	44.17	44.46	44.75	45.04	45.33
Imp(A)	13.02	13.05	13.08	13.11	13.14	13.17
Voc(V)	51.74	51.86	51.98	52.1	52.22	52.34
Isc(A)	13.59	13.61	13.63	13.65	13.67	13.69
Module Efficiency(%)	22.07	22.26	22.45	22.65	22.84	23.03
Bifacial output-backside power gain >>>
5%Pmax(W)	599	604	609	614	620	625
5% Module Eiffciency	23.17	23.36	23.56	23.76	23.99	24.18
15% Pmax(W)	656	661	667	673	679	684
15% Module Eiffciency	25.37	25.59	25.81	26.04	26.27	26.49
25% Pmax(W)	713	719	725	731	738	744
25% Module Eiffciency	27.58	27.81	28.05	28.29	28.56	28.80
Product Specification >>>
Cell Type	Mono crystalline
Cell Quantity	108cell
Cell Size(mm)	182*91mm
Module Size(mm)	2278*1134*30mm
Module Weight(kg)	31kg
Glass Thickness(mm)	2.0mm
Frame Materia	Anodized aluminum alloy
Junction Box	IP68
Cable/Connector	4mm2,MC4compatible
Cable Length	+300mm/-300mm;or Customize
Max System Volt(V)	1500VDC
Max Fuse Rate(A)	25A
Power Tolerance	0-+3%
Pieces per Pallet	31/36
Size of Packaging(mm)	2305*1125*1270mm
Weight of per Pallet(kg)	1141kg
Pieces per Container	720pcs
Size of Container	40'HC

Best OC System Best OC System >>>
Company Profile COMPANY PROFILE >>>
Raw material supplier
Certifications CERTIFICATE >>>
Exhibitions EXHIBITIONS >>>
Application APPLICATION >>>
Packaging & Shipping PRODUCT PACKAGIN >>>
TRANSPORT >>>
FAQ >>>
TECHWISE SOLAR, Solar panel manufacturer. Produce 40W-710W mono and poly solar panel, flexible solar panel, bifacial solar panels. As a professional solar module manufacturer, Techwise solar with 15 years experience in product.
KEY FEATURES OF TECHWISE SOLAR
1.TOPCon and PERC technology.
2.Three steps quality control of EL testing, Flash testing. Automatic production line to avoid hidden cracks.
3.Warranty cover all the solar panel 30 years.
If you need the best price, the best quality, the most secure payment method, Techwise solar is your best choice.
Q:What is the minimum quantity for mass purchase ?
A:1 pallet,31pieces.
Q:What is your payment terms?
A:Our payment term is 30% T/T deposit after signedthe Pl, 70% T/T balance before loading.
Q:How long is your production cycle ?
A:15 days after got your deposit.
Q:How many pieces in a carton ?
A:lt depended on the thickness of frame , if it is 30mm ,31pieces per pallet, if it is 35mm, 36 pieces per pallet.
Q:What certifications do you have?
A:We have TUV,CE,ISO and CGC certification.

---
