China Manufacturers with Output 3-4tonper Hour Ring Die Pellet Machine

Product Description

China Manufacturers with Output 3-4tonper Hour Ring Die pellet machine
Product Description

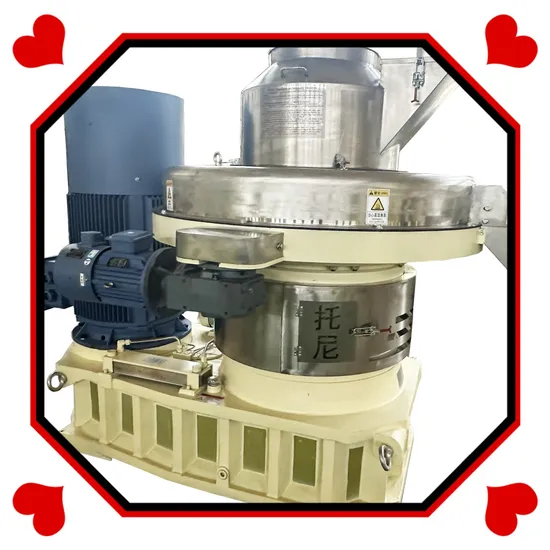

TONY wood biomass pellet machine is a new biomass fuel production machinery by using crushed sawdust . Compared with the old machine, it obsorbed the essence of horizontal ring die and flat-die Pellet Mill Machine, solved the insufficient pressure, die crack problems of horizontal ring die pellet machine, and overcame the small capacity, high failure rate of flat die wood pellet making machine.

Technical Datas of Biomass Wood Pellet Machine

Model	Power(KW)	Capacity(T)	Weight(T)	Size(mm)
TYJ551-III	90	1.5	5.5	2100*1300*2000
TYJ551-III	110	1.5-2	5.8	2100*1300*2000
TYJ551-III	132	2-2.5	6	2250*1400*2150
TYJ760-III	160	2.5-3	9	2500*1600*2400
TYJ860-III	220	3-4	13.5	2700*1700*2500

Main Features
1) Automatic lubrication system for the rollers and spindles which can reach the machines run 20 hours without resting.High
tempreture/pressure,and low temporeture/pressure warning and automatic lubrication.
-----Other suppliers did not have this system,they have to lubricate each working time for about 8hours.
2) Big gear Transmission for easy operation and lower maintenance.Two big gears,each weight is more than 1.3ton.
-----Other suppliers all use the reducer transmission,which is easy to break,and higher maintenance.
3) 4 rollers working, increasing press rate and capacity.
-----Other suppliers all use the 2 rollers.
4) Double layers ring die type, longer working lifetime.
Details
Spare Parts for wood pellet making machine
Requirements for raw materials
Size:Less than 5 mm
All the raw materials must be crushed into sawdust before going
to wood pellet machine.If not, you may need a wood chipper, wood crusher.
Moisture:10-15%
Better for pelletizing high quality pellets, Final Pellets For burning
Ø6mm/8mm: household stove burning;
Ø8mm-18mm: Industrial using
Energy Level: 5kwh/kg, Compared to Oil: 1 lty oil = 2kg wood pellets
How to make pellet:
wood log is the most common raw material for making wood pellets.
So, how to design a suitable wood pellet production line with wood log as raw material?
First, a drum wood chipper is used to chip wood log into small size wood chips with 2.5-3.5cm.
After that, hammer mill/wood crusher is used to grind wood chips into sawdust (6-12mm).
Sometimes, a dryer is need ,as usually the MC of wood log is always about 30-50%,Under this condition, a dryer is need.
Then, a vertical ring die wood pellet mill machine is used to press dried, wood sawdust into good quality wood pellets.
Customer Case
Company Introduction
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
FAQ
1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China. You can fly to Jinan airport and then we will pick you up(40
minutes by car) . All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE.

---
