Pet Square Bottle External Washing Filling Bottle Cap Making Machine

Product Description

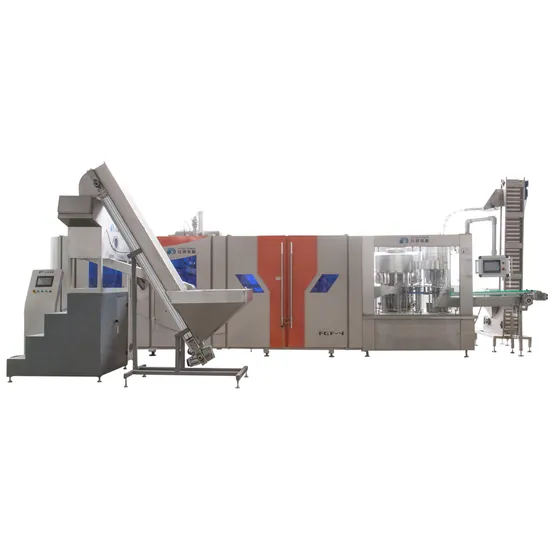

FG series automatic pet bottle making machine
1. Product Description
This Automatic 3-in-1 Wash-filling-capping Water Filling Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from 250ml-2500ml meanwhile few changeover is needed. This series of filling machine capacity varies from 65000BPH to 13000BPH. Our water filling machine is designed for the low/middle capacity and small factory. It features low water and low electricity consumption, small space occupation as well as easy operation. At the same time It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine. it can perfectly complete the function of automatic washing, filling and capping, which has been aproved by our clients as technical matured and quality product.
2. Features
1. Save installation space
2. Save equipment investment
3. Save water consumption
4. Save power consumption
5. Save operators
6. Save maintenance costs
7. Less waste of finished bottles (Once the filling machine stops, the preforms that have entered the bottle blowing system can be blown into the bottle again, so as to reduce waste)
8. It can meet the needs of small and medium-sized small-scale products

Model			FG4	FG6	FG8	Remark
Mold number(piece)			4	6	8
Capacity(BPH)			6500~8000	9000~10000	12000~13000
Bottle specification	Max volume(mL)		2000	2000	750
	Max height(mm)		328	328	328
	Round bottle max diameter(mm)		105	105	105
	Square bottle max diagonal(mm)		115	115	115
Preform specification	Suitable inner bottle neck(mm)		20--25	20--25	20--25
	Max preform length(mm)		150	150	150
Electricity	Total installation power(kW)		51	51	97
	Heating oven real power(kW)		25	30	45
	Voltage/frequency(V/Hz)		380(50Hz)	380(50Hz)	380(50Hz)
Compressed air	Pressure(bar)		30	30	30
Cooling water	Mold water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6--13	6--13	6--13
	Oven water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6-13	6-13	6-13
Machine specification	Machine dimension(m)(L*W*H)		3.3X1X2.3	4.3X1X2.3	4.8X1X2.3
	Machine weight(Kg)		3200	3800	4500

3. Packaging & Shipping
Wooden box with film wraping
4. Our Services
1> The machine will be tested and checked at our workshop before delivery.
2>After one year, we will supply accessories are provided only one the cost price.
3> Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part.
4>Free production technology and process configuration.
5> We can help you to design the product line, workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $100/day during the engineer's journey.
7>Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first
5. Company Information
Jaingsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.

Stick to the company idea making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Welcome to visit our company, and make win-win cooperation in the future.

---
