Aerospace Industry High Power Horizon China Metal Laser Cutter Machine

Product Description

Product Description

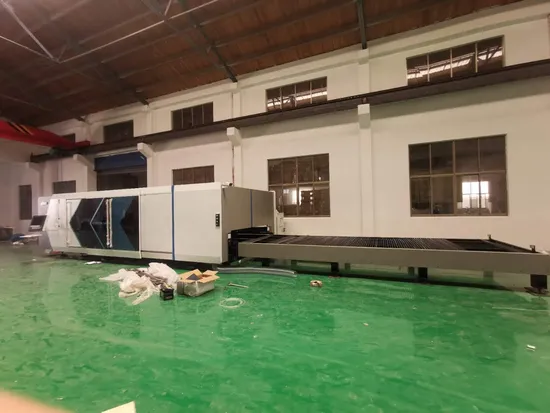

Exchange table laser cutting machine comes with high processing efficiency. It adopts imported servo double-drive rack and pinion structure, parallel interactive worktables, and fully enclosed sheet metal outer protection. It is a laser cutting machine with superior performance and high-efficiency processing. Suitable for external processing or exclusive industry customer groups (aluminum sheet).
Detailed Photos
Product Parameters
Features One-click platform exchange, saving time and energy.
Double table design, cutting and loading & unloading can be carried out at the same time, ensuring uninterrupted processing all day long.
Full-enclosed protection and segmented follow-up dust removal design create a clean and friendly processing environment.
The high-strength bed combined with high-precision dynamic performance is specially designed for high-speed batch cutting of medium and thin plates.
High-power (12000W-30000W)
Technical Parameters

Laser power	12000-30000W
Model	DPX-J6025	DPX-J8025	DPX-J10025	DPX-J12025
Cutting range	6000 × 2500mm	8000 × 2500mm	10000 × 2500mm	12000 × 2500mm
Cutting focus method	Auto focus
Machine running accuracy	Acceleration: 1.8G
	Maximum speed: 150m/min
	Axial positioning accuracy of worktable: ± 0.05mm/m
	Repeated positioning accuracy of worktable: ± 0.03mm/m

Cutting Performance

material	12000W cutting performance		15000W cutting performance		20000W cutting performance
carbon steel	stable cutting	≤ 35mm	stable cutting	≤ 40mm	stable cutting	≤ 45mm
	Limit cut	50mm	Limit cut	60mm	Limit cut	70mm
Stainless steel	stable cutting	≤ 30mm	stable cutting	≤ 35mm	stable cutting	≤ 40mm
	Limit cut	50mm	Limit cut	70mm	Limit cut	80mm

Application Effect



Medium power (3000W-6000W)
Technical Parameters

Laser power	3000-6000W
Model	DPX-J3015	DPX-J4020	DPX-J6025	DPX-J8025
Cutting range	3000 × 1500mm	4000 × 2000mm	6000 × 2500mm	8000 × 2500mm
Cutting focus method	Auto focus
Machine running accuracy	Acceleration: 1.2G
	Maximum speed: 100m/min
	Axial positioning accuracy of worktable: ± 0.05mm/m
	Repeated positioning accuracy of worktable: ± 0.03mm/m

Cutting Performance

material	3000W cutting performance		4000W cutting performance		6000W cutting performance
carbon steel	stable cutting	≤ 20mm	stable cutting	≤ 22mm	stable cutting	≤ 25mm
	Limit cut	25mm	Limit cut	25mm	Limit cut	30mm
Stainless steel	stable cutting	≤ 9mm	stable cutting	≤ 10mm	stable cutting	≤ 14mm
	Limit cut	12mm	Limit cut	14mm	Limit cut	20mm

Application Effect



Low power ( 1000-2000W )
Technical Parameters

Laser power	1000-2000W
Model	DPX-J3015	DPX-J4020	DPX-J6025
Cutting range	3000 × 1500mm	4000 × 2000mm	6000 × 2500mm
Cutting and focusing method	Manual / automatic focusing
Machine running accuracy	Acceleration: 1.0G
	Maximum speed: 80m/min
	Axial positioning accuracy of worktable: ± 0.05mm/m
	Repeated positioning accuracy of worktable: ± 0.03mm/m

Cutting Performance

Material	1000W cutting performance		1500W cutting performance		2000W cutting performance
Carbon steel	stable cutting	≤ 8mm	stable cutting	≤ 12mm	stable cutting	≤ 16mm
	Limit cut	12mm	Limit cut	16mm	Limit cut	20mm
Stainless steel	stable cutting	≤ 4mm	stable cutting	≤ 6mm	stable cutting	≤ 7mm
	Limit cut	6mm	Limit cut	8mm	Limit cut	10mm

Application Effect

Certifications

Our Advantages
After Sales Service
1. 7*24 hour2. Response time<12 hours3.Online support4.Product replacement5. Customer field service6. Backup products during repairing for long time cooperators* International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
1. What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
2. What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

---
