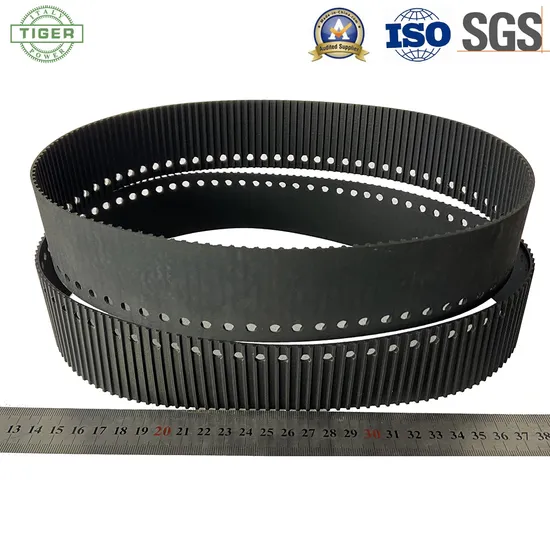

Cogged Industrial Rubber Chain Synchronous Belt Tooth Drive Timing Belt

Product Description

Product Description
Tiger(Fujian) variety of products are applied to different industrial requirements, include over 100 kinds of standard products and more than 400 tailor-made products. Our timing belt consists of neoprene body, fiberglass tensile cord and nylon tooth facing with competitive advantages, such as high strength,excellent flex life, high resistance to elongation, oil resistance, heat resistant, and so on, which is suitable for high accuracy positioning equipment, heavry engineering machinery, such as office equipment, power tools, food processing, textile machinery, printing machinery, transportation equipment, agricultural machinery, woodworking, papermaking, robot, etc. With advanced fabrication equipments and experienced technology, Tiger(Fujian) offers optimal belting solutions.
Features:
· oil-resistant
· skid resistance
· high strength
· acid resistant
· wear resistance
· corrosion resistance
Applications:
· Office automation equipment and vending machines
· Textile machines
· Paper making machines and printing machinery
· Packing machinery
· Medical equipment
· Food processing equipment
Available Series

T Type Rubber Timing Belt
Type	Pitch(mm)	Tooth height(mm)	Belt thickness(mm)
MXL	2.032	0.51	1.14
XL	5.080	1.27	2.30
L	9.525	1.91	3.60
H	12.70	2.29	4.30
XH	22.225	6.35	11.20
XXH	31.750	9.53	15.70
T2.5	2.5	0.7	1.30
T5	5	1.20	2.20
T10	10	2.50	4.50
T20	20	5.00	8.00
AT5	5	1.20	2.70
AT10	10	2.50	5.00
AT20	20	5.00	8.00

Arc Tooth Rubber Timing Belt
Gear code	Type	Pitch(mm)	Tooth height(mm)	Belt thickness(mm)
HTD	2M	2	0.75	1.36
	3M	3	1.17	2.4
	5M	5	2.06	3.8
	8M	8	3.36	6
	14M	14	6.02	10
	20M	20	8.4	13.2
STPD/STS	S2M	2	0.76	1.36
	S3M	3	1.14	2.2
	S4.5M	4.5	1.17	2.81
	S5M	5	1.91	3.4
	S8M	8	3.05	5.3
	S14M	14	5.3	10.2
RPP/HPPD	P2M	2	0.76	1.36
	P3M	3	1.15	1.9
	P5M	5	1.95	3.5
	P8M	8	3.2	5.5
	P14M	14	6	10

Our Advantages
QUALITY ASSURANCE
Guarantee that the commodity here of complies in all respects with the quality and specification stipulated in the contract.
DELIVERY GUARANTEE
Ship the goods within the shipment time from the port of shipment to the destination in the contract.
FACTORY PRICE
Prices refer to the cost of raw materials directly from factory.
TEAM OF PROFESSIONALS
Offer experienced customer service and technical support including belts selection, calculation, application and after-sale service.
FABRICATION WORKSHOP
Provide belts cutting, jointing, as well as belt perforations, belt sealed, belt coated with rubber and sponge, belt guides, etc.
SERVICE NETWORK
Set up office, branches in Foshan, Suzhou, Wenzhou, Hongkong, etc, service locations for processing industrial belts in Foshan, Wuxi, Yongbo etc.
Company Profile
Certifications
Other Related Products
Related Products:
-machine tape
-spindle tape
-tangential drive belt
-OE rotor spinning belt
-twisting flat belt
-folder-gluer belt
-extruded round belt polycord
-conveyor processing belt
-open belt cutting to the sizes
Key Products:
-Light-duty conveyor fabric belts
-Flat power transmission belts
-PU & rubber timing belts
-High temperature PTFE belts
-PU round belts & V belts
-Profiles & cleats
-Other products and components
FAQ
Q: Could you provide sample ?
A: Yes, we could.
Q: What is your delivery time?
A: Delivery time normally is 3--15 days. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Q: Do you have any certifications?
A: Yes, we have SGS and many other laboratory tests; your special certification tests can be accepted.
Q: What is your terms of payment ?
A:Paypal, Money Gram, T/T, L/C, Western Union, etc.
Q:Is customization available?
A:Yes. Our customized service is available.

---
