COBB Tester for the water absorption of paper and paperboard

Product Details

Product Description

Product Description

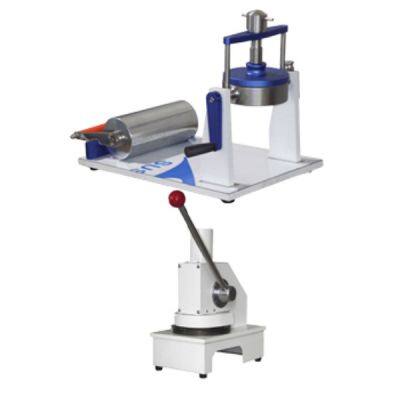

COBB-01 COBB Tester
Application
COBB-01 COBB Tester is used for assessing the water absorption of paper and paperboard through the Cobb method. It proves effective in sizing paper and determining water absorption on cardboard surfaces, but it is not recommended for use on basic paper or embossed paper with a basis weight below 50g/m², having low sizing degree, or exhibiting numerous pinholes. Additionally, it is not suitable for assessing unsized paper and cardboard accurately, nor does it provide an accurate evaluation of the writing performance of paper or cardboard.
The Cobb tester evaluates the water absorption capability of paper or cardboard surfaces. The Cobb value represents, under specific conditions and within a specified timeframe, the mass of water absorbed by the carton board surface per unit area, expressed in grams per square meter (g/m²).
COBB Value
Cobb value is the calculated mass of water absorbed in a specified time by 1 m² of paper or board under specified conditions
Benefits
● Stainless steel made
● Standard conformed metal roller
Standards
GB/T1540, ISO 535, QB/T1668, TAPPI T441
Main Parameters

COBB-01
Test Area	100±0.2cm²
Water Consumption	100±5ml
Metal Roller Width	200±0.5mm
Metal Roller Weight	10±0.5kg
Dimension	（396*315*300）mm LWH
COBB Sample Cutter
Sampling Diameter	Ø125mm
Sampling error	±0.2mm
Sampling Thickness	（0.1～2.0）mm
Dimension	(250*280*450) mm LWH

---
