Description:

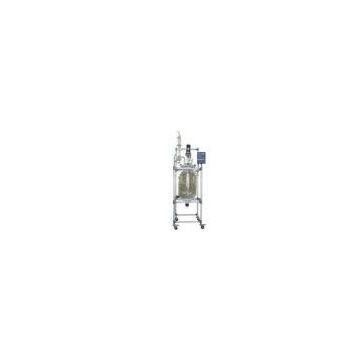

This reator is double-layer design, reaction solvent can be placed in the inner to do stirring reaction,and the jacketed layer can do loop heating or cooling reaction through different sources(frozen liquid,hot water or oil). In the case of constant temperature and sealed glass reactor,stirring reaction can be done in the ordinary pressure or positive pressure according to your requirement,also can do backflow and distillation, is the ideal test and manufacturing equipment of fine chemistry,bio-pharmaceuticals,the synthesis of new material.We have exported to many countries and we are also the supplier of Havard university,Yale university and so on.
Feature:
1, Frequency control(0.5L-100L),electronic control(1-5L),AC induction motor,constant rotating speed, no brush,no spark, safe and steady,and can work constantly.
2,The full set of glassware use G3.3borosilicate and own good chemical and physical capability.
3,Heating reaction can be done after circulating through the hot oil from the mouth of jacketed glass reactor, also cooling reaction can be done through frozen liquid
4, Reaction can be carried out at room temperature, through the water that will take heat away quickly.Feeding mouth with flanges and PTFE valve,no dead corner,removable to facilitate solid material discharging.
Basic Configuration:
number
| Name
| Quantity
| instructions
|
1
| Double layer reactor 20L
| one
| GG17Borosilicate glass
|
2
| Stirring motor
| one
| Speed 0-780rpm
|
3
| Frequency control
| one
| No classless ajustable speed ,digital speed display(digital display temp)
|
4
| Five mouth kettle
| one
| Euipped with the reactor body,condensor(backflow and condensor),feeding funnel, Thermometer tube,valve for lower the temp,stirring mouth;and can equip the solid charging port according to the customer needs
|
5
| PTFE sealing
| One set
| Supply high vacuum environment
|
6
| Frame of the reactor
| one
| Support the reactor,304
|
7
| condensor
| one
| Condensation and distillation(backflow)
|
8
| PTFE discharging valve
| one
| Can be discharged
|
9
| Thermometer tube
| one
| For contain the thermometer
|
10
| Feeding funnel
| one
| For dropping of the liquid
|
11
| PTFE stirring rod
| one
| PTFE,with the liner stainless steel
|
12
| Distillation and condensation pipe
| one
| Use to connect the kettle cover and condensor,separation,concentration
|
13
| Release valve
| one
| Use to release air and fill the nitrogen
|
14
| Vacuum table
| one
| Measuring the vacuum degree of the reactor
|
15
| Bracket of the reaction body and cover
| one
| Aluminum alloy
|
16
| Tray of the kettle body
| one
| Aluminum alloy
|
17
| Hex wrench
| one
| Adjust the frame
|
18
| Universal joint
| one
| one
|
>>
