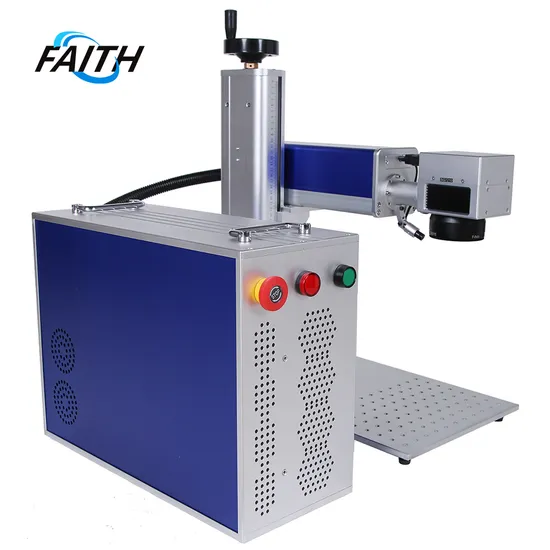

Semiconductor Quick Marking Handheld Metal Laser Marker Logo Engraving Machine with Fully Closed Light Paths

Product Description

Semiconductor Quick Marking Handheld Metal Laser Marker Logo Engraving Machine with Fully Closed Light PathsThe main functions of pl130 laser machine1) This PL130 laser marking machine can be equipped with various power laser light sources, no matter which industry you belong to, we provide the most suitable fiber laser marking machine;
2) The PL130 laser marking speed is fast and the efficiency is high. At the same time, the output of the workpiece is obviously increased, which speeds up the user's return on investment;
3) The PL130 laser machine has a long service life, stable laser output power, high reliability, and can work continuously under harsh working conditions. In principle, the service life is more than 100,000 hours, which is basically maintenance-free, which is more than 15 times that of semiconductors
4) Small size, low energy consumption, convenient operation, saving production space
PL130 Laser Marking Machine Parameter

Product Name	Static fiber desktop laser engraving marking machine
Laser Power	20W/30W/50W
Laser Wavelenghth	1060nm
Beam Quality	<2(M2)
Laser Type	Pulse or Continuity
Cooling System	Air Cooling
Power Supply	200V,50Hz
Operating Environment	Temperature:-20ºC-45ºC relative humidity 80%
Marking Depth	10w 0.3mm or less 20w 0.5mm or less 30w 0.7mm
Marking Speed	7000 mm/s or less
Marking Range	Standard plane 110mm*110mm can be customized
Minimum of characters	0.15mm
Minimumline width	0.012mm
Repeat precision	+/- 0.002
Operating system	Win 98/ Win 2000 / Win XP/ Win 7
Graphiceditor	Software provide self editor,computer input,plane circumference,fan-shape distribution and end.
Graphic conversion	Software to provide Auto CAD Corel DrawCAXA graphic file conversio

Application of PL130 laser marking machine 1. It can process various metal and non-metal materials. Especially suitable for high hardness, high melting point and brittleness
The advantages of material marking are more obvious.
2. It belongs to non-contact processing, no damage to the product, no tool wear, and good marking quality.
3. The laser beam is thin, the processing material consumption is small, and the processing heat-affected area is small.
4. High processing efficiency, computer control, easy to realize automation

Meet the high-speed production requirements of automobile, electronics, medical machinery processing, etc
Genuine software features powerful
High-precision correction/support system/support language
Reducing the time and cost of installation and programming
Adjustable manual Lifting function
According to the size of the object to adjust the focus for engraving
Feature of pl130 fiber laser marking machine
Connect rotator:
The machine can be connected with a rotator to print cylindrical or arc objects, further expanding the scope of use.
Red light focusing function:
Through the visual adjustment of red light, the maximum focal length can be precisely located, so that the laser beam can reach the maximum value.
Red light preview:
Red light produces a rectangular frame, which clearly indicates the specific range of printing, so that what you see is what you get.
Support multiple file formats:
Support PLT, PCX, DXF, BMP and other files, and directly use SHX, TTF libraries. Support barcode font, set automatic serial number, date and time according to production needs.
High quality laser:
The machine adopts Chinese first-line light source brands raycus and Max, as well as international famous brand IPG light source, to ensure the printing quality.The service life can reach 200000 hours.
High speed galvanometer:
The machine adopts sinogalvo high-speed galvanometer to ensure the stability of printing process.
Flexible match of field lens:
The machine adopts the Singapore wavelength high transmittance galvanometer.The printing range can be adjusted from 12 * 12cm to 40 * 40cm by changing galvanometer.
Connectable rotator:
The machine can be equipped with optional rotator to print the arc object. Packing List

Name of a single accessory attached	Quantity
Optical fiber laser machine cabinet	1
Laser	1
Scanning galvanometer	1
General control power box	1
3D lifting bracket	1
15 inch LCD display	1
Professional date line	1
Foot swich	1

Please contact me if you are interested! FAQ
1.What are the primary products of your company?
Our primary products include laser marking machine, inkjet printer machine,paging machine.
2.Where is your laser marking machine applied to?
Our laser equipment is applied to metal, non-metal, textiles, leather, shoes, advertisement, gifts, electronic components, stamp,etc
3.Which countries are your laser machinery sold to?
Our products are widely exported to Poland, Russia, Ukraine, Korea, Thailand, Egypt, Brazil, Australia, Singapore, Saudi Arabia,
Turkey, India, Italy, and other countries.
4.How long is the delivery time?
The products will be delivered to you within one week after the order is confirmed.
5.What certificate has your company got?
All of our product with CE, ISO
Certificate
About company
Shenyang Faith Technology Co., Ltd. is a high-tech enterprise, which integrates independent research and development, production, sales and service. It specializes in providing industrial coding technology and traceable system solutions. The company was founded in 2010 with a 30-person team and a 500m² production workshop. After more than 10 years of unremitting efforts, by early 2020, it has developed into an excellent team of 300 people and a 2500m² production workshop. The company's products mainly include laser marking machines, CIJ printers, TIJ printers, and conveyor belts. The products are exported to Spain, the United States, Brazil, Argentina, Chile, Saudi Arabia, the UAE, Egypt, Ecuador and other 126 countries, serving more than 200,000 customers. The company's philosophy is focus on coding, treats quality as the base and service-oriented principles. Shenyang Faith Technology's vision is to become the most professional, caring and trustworthy enterprise in the printing industry.
Feed Back
For more than 11 years, Faith products have been exported to 126 countries, occupying 7% of the industry's market share, and customers all over the worldIf you have any questions, please feel free to contact me, I will do my best to give you a satisfactory answer.
what service can we provide for you?
24 hours after sales online, / no matter you are looking for help anywhere, anytime, we can respond quickly
Excellent technical consultant, provide the best online solution.
Three-year warranty, during the warranty period we provide professional, considerate and timely after-sales service. Give back For more than ten years, Faith products have been exported to 126 countries, accounting for 7% of the industry's market share, and customers all over the world have won unanimous praise from everyone.
After payment is completed, your order will be shipped within 3 daysWe use express ups, dhl, ems, fedex, and the package will reach your hand in 3-12 business days.
Please contact me if you are interested!

---
