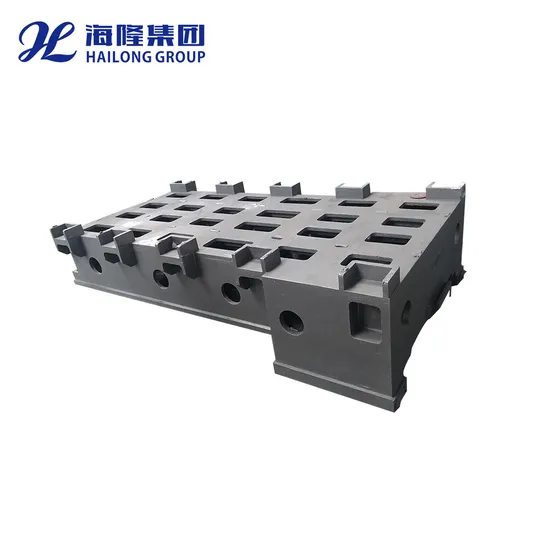

Factory Price Large Grey or Ductile Iron Casting for CNC Machine Tools Lathe Parts

Product Description

Product Description
Most of our casting products are made by lost foam casting , or called resin boned sand casting.one time shape ,with large bearing ability. we can produce various of large casting products, which weight scope from 20 kg to 15 Ton. Our casting products has wide usage, can be used in in CNCmilling machine , mining machine ,grinding machine,construction machine as well as compressor,large stamping die,wind power generator base.

Product Name	Large grey or ductile iron casting for CNC machine tools lathe parts
Manufacturing technique	Lost foam casting, Resin boned sand casting, wooden pattern casting
Raw material	Grey IronHT200,HT250,HT300, Ductile iron,steel, stainless, Aluminum
Testing equipment	Casting sand hardness tester ,Spectrum analyzer ,Carbon& sulfur analyzer ,Carbon &silicon analyzer, Tension tester, Rapid temperature measuring probe, Hardness tester, Metallographic analysis microscope;
Other Equipment	Gantry Machining Center, OKUMA 4 axis &5 axis, Inductothem Electric furnace 10 Ton , Sand blasting machine, Resin boned machine,
Application	Milling machine ,vehicle mould, steam turbine, mining machine, construction machine, Wind generator…
Advantages	complete testing equipment and testing procedure to ensure casting elements content fulfill requirements ; Testing proceeded in cast sand, raw material, molten iron , finished product
Customers	Doosan ,GM, Jeneng steam turbine
Undertake business	CNC machine base ,column, work plate, spindle box, sliding rail; Steam turbine parts, mining machine parts, construction machine base …as well as other casting products ,such as clay sand casting, die casting.
Needed information to quote	Material, Drawing, Heat treatment, work allowance, Need Machining or not.

Company Profile
Qingdao Haishun Jihua Machinery Co., Ltd.
Qingdao Haishun Jihua Machinery Co., Ltd. was established in 2004 and is a wholly-owned subsidiary of
Qingdao Hailong Machinery Group. With an investment of more than 60 million RMB, the plant covers an
area of 12,960 square meters, has industry-leading technology, advanced casting equipment, physical and
chemical testing equipment, and applies Advanced ERP management systems. It is one of the outstanding
casting enterprises in China.
The company has 3 gantry machining centers. 1 set of natural gas aging treatment equipment, furan resin
sand production line (1 set), all equipments are controlled by PLC program for the curing speed of
self-hardening sand. The United States Inductotherm Group one set of 10T / h two electric furnaces and
one set of 2T / h two electric furnaces made by Suzhou Zhenwu. The production process adopts fixed-point
casting and fixed-point cooling.
At present, the company has 65 employees and 15 professional and technical personnel, and has passed
ISO9001: 2000, TUV16949 international quality management system certification. The main production and
operation of automotive mold casting products (such as steel castings, cast iron parts) and machine tool
castings. Automotive mold castings support for FAW molds, China's Second steam, Tianqi molds,
Shanghai Hongxu, Beiqi, Guangzhou Automobile Honda and other companies. Machine tool castings
are supplied to companies such as Doosan in South Korea, Doosan in Yantai, GD in the United States,
Huachuan in South Korea, and Qingdao Jieneng Steam Turbine. The annual production capacity is
12,000-15,000 tons, and the annual output value is 100-120 million yuan.
casting working flue

Certifications

FAQ
1. Q:you manufacturer or Trading company?
A:We are direct manufacturer with 5 wholly companies. Cover over 500,000 square meters. Whole asset over 1.2 billon RMB. Products cover metal stamping parts, auto parts, truck body , vehicle mould , large casting products(machine base,vehicle mould)
2.Q:Could u list ur main customers?
A:FAW M.ould (Jilin),FAW Jiefang Qingdao Co.,Ltd(Qingdao) Beijing Benz(Beijing), Great Wall Automobile (Baoding), Automobile (Chongqing), Dongfeng Automobile(Shiyan,Hubei). Shanghai Hongxu(Shanghai),Honganhaifudi Automobile (Guangdong) . Most are local brand auto company. we provide them car metal stamping parts, vehicle mould, as well as half finished truck cab, truck body.
3.Q:What is the delivery time?
A:Normal type products in stock, can be provided very soon. For Customized products , the delivery time is about 25 days.
4.Q:What does your company need to submit a quotation?
A:Drawing or sample, together with relevant information, such as quantity,weight material.
Most of our products are customized , so we need as detailed as possible information to design for you.
5.What kind of format of the drawing?
A:PDF,IGS,DWG,STEP,etc.
