Supplier Rubber Molding Machine Hydraulic Press Plate Vulcanizing Machinery

Product Description

Model	XLB-50T	XLB-100T	XLB-150T	XLB-200T
Clamping force	50t	100T	150T	200T
Max system pressure	21Mpa	21Mpa	21Mpa	21Mpa
Stroke	250mm	250mm	300mm	300mm
Rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s
Plate size	380*380mm 400/400mm	400*400mm 450*450mm 500*500mm	500*500mm	510*540mm 600*550mm
Daylight	350mm	350mm	350mm	350mm
Working layer	customized	customized	customized	customized
Max temperature	300C	300C	300C	300C
Motor	3kw	4kw	5kw	7.5 kw
control	PLC+HIM	PLC+HIM	PLC+HIM	PLC+HIM

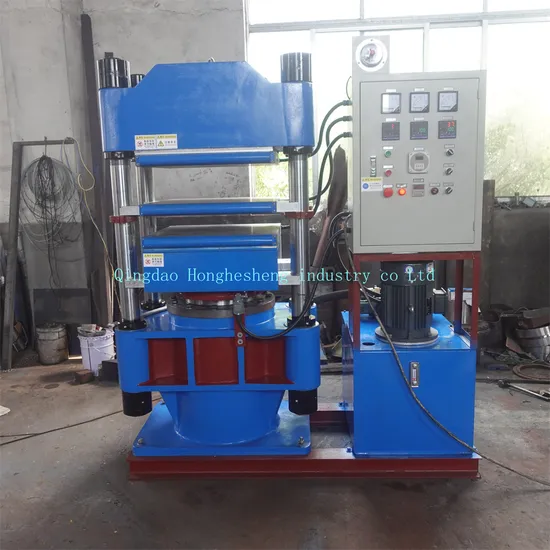

1.1This machine is frame and four colomn structure, including main machine, hydraulic station, electric controlling cabinet
1.2Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device
can be used as hydraulic press machine

1.The machine adopts the semi-automatic control . The working program can be set in the cabinet and machine will work according to this program
2.Most spare parts for hydraulic system are imported from Taiwan
3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from China famous Brand ,which can stabilize machine performance
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Train how to install and use.
* Communicate and drawing design. * Overseas Service.
* Test machine before delivery. * Video Call Support Online
1. Q: How does your factory control quality?
A: Quality is priority. Quality Department will make a strick inspection before the machines leave the factory.

2. Q: Are the techncal parameter is fixed?
A: Basically, each model is corresponding to a related machine. But we can design different type machine according to the client's requirement.

3. Q: How to send your enquiry? Kindly tell me the answer...
-1) What's pressure do you need?
-2) What's your product material,lengh,width,thickness...?

---
