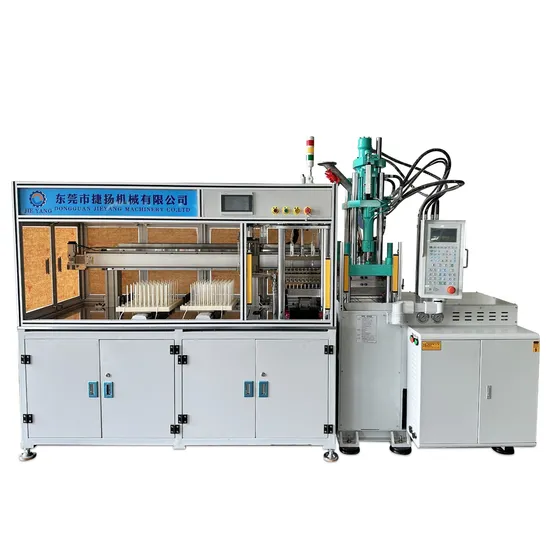

Full Automatic Equipment Manufacturing Plastic Flosser Dental Floss Stick Tooth Pick Making Vertical Injection Molding Machine

Product Description

Full automatic equipment manufacturing plastic flosser dental floss stick tooth pick making vertical injection molding machine

Item	Description	Remark
Injection machine	45T	Vertical plastic injection moulding machine
Pull stroke	1300mm	Adjustable
Up and down stroke	50mm	Adjustable
Cavities	20	Decided on the product
Applicable wire	Polymer, Nylon, PTFE	Customized the cutting die according to product
Applicable plastic	PP, HIPS, ABS
Power and power consumption	AC220V 50Hz about 1.5KW-H
Air pressure	0. 5~0. 8Mpa
Air consumption	About 20L each cycle
Weight	650kgs

Product Application Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely
apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards,
medical devices, open containers, connectors, cables,auto parts, Plug ,etc.

MODEL	JY-450ST	JY-500ST	JY-850ST	JY-1000ST
Screw Diameter	35mm	42mm	48mm	48mm
Max.Shot Weight	106g	176g	227g	260g
Clamping Force	45Tons	55Tons	85Tons	120Tons
Opening troke	200mm	200mm	255mm	300mm
Ejector Force	1.76Tons	1.76Tons	2.1Tons	4.8Tons
Ejector Stoke	35mm	35mm	45mm	45mm
Oil Resservoir Capacity	130L	150L	180L	200L
Pump Motor Power	5.5KW/7.5HP	7.5KW/10HP	11KW/15Hp	14.5KW/22HP
Power	9KW	12KW	16KW	20KW
Machine Weight	2.4Tons	3.0Tons	5Tons	6.8Tons
Machine Dimensions(LxWxH)	1.7x1.2x3.0m	1.85x1.2x3.0m	2.0x1.3x3.2m	2.0x1.4x4.1m
Shipping Weight	2.7Tons	3.4Tons	5.4Tons	7.2Tons
Shipping Measurment(LxWxH)	1.92x1.3x2.3m	2.1x1.4x2.3m	2.2x1.4x2.5m	2.2x1.6x2.8m

Description of information required:

1. Fully automatic production of dental floss products.
2. Complete functions, including functions such as hot cutting of thread ends,
free setting of counting,waste runner cutting, thread collection, and automatic replacement of material.

3. Production efficiency, each mold cycle is 10S, and each mold needs to reach 20 cavities.
Each device produces 172,800 dental floss per day (24 hours).

4. It is convenient to replace the cutting die and easy to adjust.
Details photos:

Machine Main Products:
Youtube Vedio:
20Cavities fully automatic dental floss production line : https://youtu.be/7orPlsCo0Ow?feature=shared
64cavities fully automatic dental floss production line : https://youtu.be/LIK0pnXHV8Y?feature=shared
If you have any questions, please feel free to contact with me !

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Where is your factory? How can visit you?

A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5: Why choose Jieyang Machinery Co., Ltd.?

A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

Welcome to inquiry us !

---
