API/DIN/JIS A105 CF3m High Pressure 900lb 1500lb316 304 Wcb Trunnion Flange Forged Stainless Steel 3PC Ball Valve

Product Description

Product Description
Anti-Sulphuric standard : ANCE MR 0175
Dimension standard : GB/T 79-94, ANSI B16. 5
Face to Face : GB 12221-2005 ANSI B16. 10
Test and check : GB/T 13927 JB/T9092 ANSI 598
Connection End : GB12224-2005 ANSI B16. 25
2. Size : DN50-400mm And 2'-16' Inch
3. Nominal Pressure : PN1. 6-16. 0MPa, Class 150-1500Lb
4. Applicable temperature : -193~300 ºC
5. Applicable medium : Water, oil products, nitrogen, ammonia, Hydrogen, and liquefied gas, etc.
6. Material : Body : A105, A350 LF2, A182 F316 sealing : RTFE, PPL Product Description

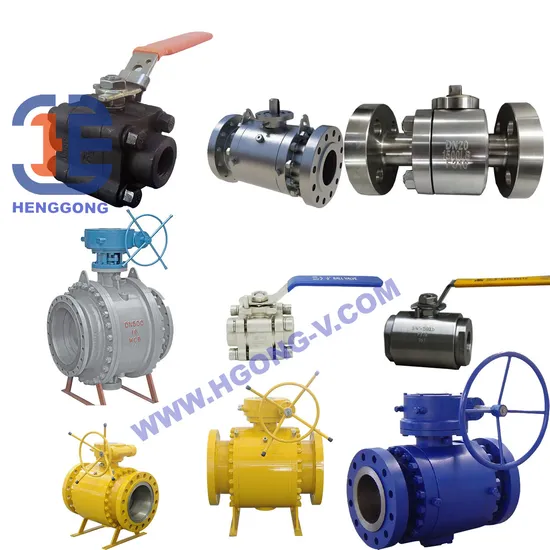

Three Pieces Type Forged Steel Ball Valves
Bolted cover or welded cover, three-piece Body, fixed Ball
Full or Reduced bore, Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
ASTM A105N, A182 F304, A182 F316, A182 F304L, A182 F316L
Standards compliance
Design and manufacture: ANSI B16.34, API 608, API 6D, BS5351
Face to face dimensions: ANSI B16.10, API 6D
Flanged connection: ANSI B16.5
Butt welded: ANSI B16.25
Fie-safe: API 607, API 6FA
Test and inspection: API 598, API6D

Design and Manufacture	ANSI B16.34, API 608, API 6D, BS5351
Face to Face Dimension	ANSI B16.10, API 6D
Flanged Dimension	ANSI B16.5
Butt welded	ANSI B16.25
Fie-safe	API 607, API 6FA
Test and inspection	API 598, API6D

Hot sales Products
Our Advantages
Company Profile

Packaging & Shipping
FAQ
Q: Are you a manufacturer or a distributor?
A: We are a valve manufacturer with 25 years of experience in valve development, design, production and sales. Won the top ten valve manufacturers in China.
Q:Is it a finished product or can be customized?
A:We customize the professional valves you need according to your technical requirements, drawings, parameters, etc.
Q:What is your price term
A:Ex-factory ,FOB
Q:what is the minimum order quantity
A:Small diameter valves is 10pcs/model,large diameter valves is 1pcs/model, if you have special requirements, please communicate with us.
Q:What is the term of payment?
A:T/T or L/C Also,we accept the order to be placed via Made-in-china

---
