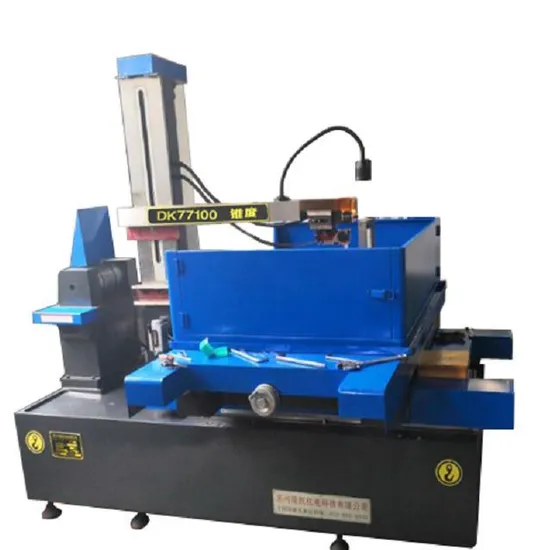

Manufacturers Supply CNC Processing Metal Wire Cut EDM Machine Dk7745

Product Description

1.Scope of supply and purpose:
Usage: the WEDM consists of main machine, electrical control system, software and cooling filter system. The equipment is used for the discharge machining of various complex dies and parts, for the machining of various non-ferrous metals, tool steels, alloy steels and other materials. The main machine of the equipment shall have high geometric accuracy and position accuracy, and enough static, dynamic, thermal stiffness and accuracy. The equipment has the functions of taper cutting, variable taper and special meshing cutting;
2. Equipment / engineering composition and working conditions
The WEDM is composed of main machine, electrical control system, software part and cooling and filtering system. The main machine is mainly composed of fuselage, column, wire frame, workbench, etc. the structure of the machine tool is compact and the design is reasonable. It has five axes of X, y, u, V and Z, among which the four axes of X, y, u and V are linked and driven by step without resistance and constant current. The vertical cabinet dqe-ds-03 (full step type) of the electrical cabinet is made of cold-rolled steel plate, with electrostatic spray molding. The interior is equipped with computer and control software, high-frequency control module, driver, frequency converter, fan, etc. The cooling system includes water tank, cooling pump and filter screen.
Long term normal working conditions of the machine:

Working environment temperature	5~40ºC
relative humidity	≤85%
Working temperature of cooling water	≤30ºC
Power Supply	380V ± 5%; 50Hz ± 1Hz; three-phase alternating current

.Color frequency converter can adjust the speed of the roller to improve the finish of the workpiece. , high efficiency (cutting efficiency can reach 10000-12000 mm2 per hour), energy saving (energy consumption of machine tool per hour is 0.85 KWH), energy saving 50% compared with ordinary machine tool, environmental protection (working fluid of high-pressure filter water tank can be changed once in 30 working days, greatly improving working time and reducing pollution discharge times
3.Technical details

No.	Description	parameter
1	project	GB 45,high speed wire cut
2	Model	Vertical cabinet dqe-ds-03 (full stepper type)
3	Electrical cabinet form	Steel rail
4	Guide	Ball screw
5	Lead screw form	Reactive stepping motor
6	Xyuv motion motor form	Frequency converter speed regulation 1 ~ 12m / S
7	Working mode of wire conveying motor	Environmental protection cover
8	Machine tool protection	0.001mm
9	Work table size	850X580
10	X. Y axial stroke	450X550mm
11	U. V-axis stroke	±35×±35mm
12	Machining taper / machining thickness	±6°/80mm
13	Maximum straight cutting thickness	400mm
14	control mode	4 axis linkage
15	Maximum load capacity	450kg
16	Maximum processing current	8A
17	Maximum processing efficiency Cr12, H = 60mm	≥180 mm²/m
18	Surface roughness (straight cutting, H ≤ 40mm)	Ra≤1.6μm
19	Cutting accuracy Cr12, H = 40mm	≤0.015mm
20	Radial runout of wire storage cylinder	≤0.02mm
21	Molybdenum wire diameter range	0.12~0.22mm
22	Wire storage capacity of wire storage cylinder	250m
23	Molybdenum wire loss Cr12, H = 40mm	≤0.02mm /300000mm²,
24	Cutting power supply	High frequency power supply system without resistance
25	operating system	Windows 98 / XP (based on control software)
26	Control system	Standard df3a (optional auto / HL / HF, etc.)
27	communication interface	LAN,RS232,USB
28	Operation function	Drawing or CAD drawing import
29	Working tank volume	55L
30	Working fluid filtration mode	Filter screen filtration
31	Weight of whole machine	1700 kg
32	Overall dimension of main engine	1900x1300x1800mm
33	Cabinet size	730×630×1820mm
34	Rated power of electric appliance	≤ 2kW

---
