US$50,000.00-55,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage

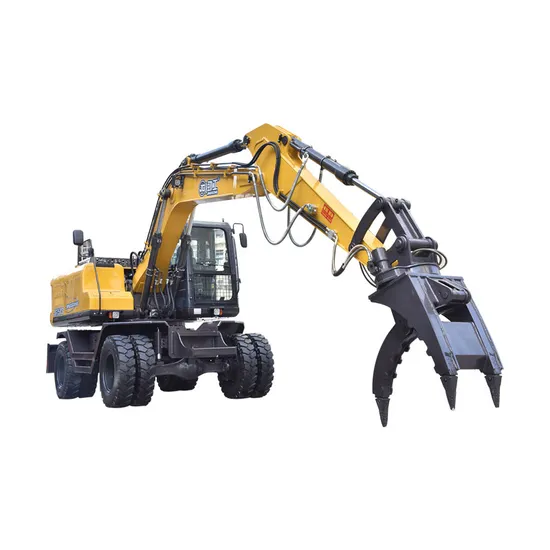

Special Excavator, Rock Grapple
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Hydraulic Tank Capacity
200L
Transport Package
Nude Packing
Specification
7200*2500*3000mm
Production Capacity
3000units/ Year
Product Description
| SPECIFICATIONS |
| RANGE OF OPERATION | Boom length | 4200mm |
| Arm length | 2000mm |
| Maximum Digging Reach | 7200mm |
| Maximum Digging Depth | 4100mm |
| Maximum Digging Force | 90KN |
| Maximum Digging Height | 8000mm |
| Maximum Dumping Height | 6000mm |
| Back-end radius of gyration | 2250mm |
| DIMENSION | (Length*width*height) travel position | 7200*2500*3000mm |
| Wheel base | 2750mm |
| Track(Front/rear) | 1900mm |
| Ground clearance of counterweight | 1260mm |
| Min ground clearance | 310mm |
| TECHNICAL PARAMETERS | Angle of rotation | 360° |
| Machine weight | 12500kg |
| Rated Power | 93KW |
| Rated Speed | 2200r/min |
| Hydraulic system working pressure | 28Mpa |
| Hydraulic system flow | 270L/min |
| Metering gear pump | 2*63ml/r |
| Max Hauling force | 76.5KN |
| Walking speed | 25km/h |
| Grade Climbing ability | 58%/30° |
| Tyre model | 900.20 |
| Volume Of Bucket | 0.4-0.5m3 |
| Fqt Fuel Quantity | ≥6L/h |
| Capacity Of The Fuel Tank | 200L |
| Hydraulic Tank Capacity | 200L |
Quanzhou Jingli Engineering & Machinery Co., Ltd.
Fujian Quanzhou Engineering Jingong Machinery Co., Ltd. was registered in Zhongyang Industrial Zone, Luojiang, Quanzhou, Fujian in 2006. Our company operates excavators in the mode of production and processing, including small excavators, double drive wheel excavators, small crawler excavators, wheel excavators, railway special machines, sugarcane pickers, wood clamping machines, railway multi-function special machines, sugarcane harvesters, trenchers, etc
>>
