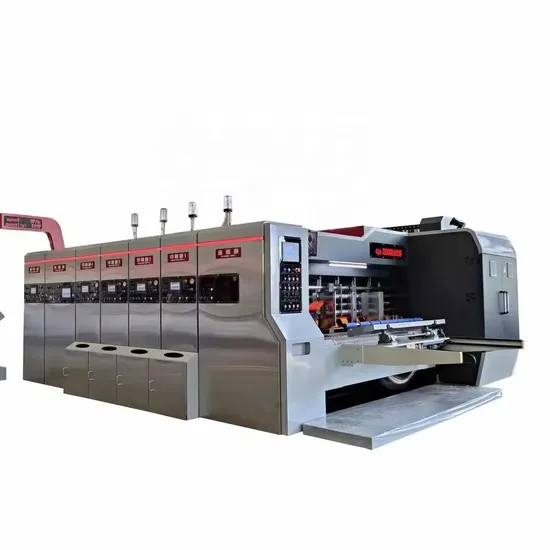

Full Automatic High Speed Printing Slotting Die Cutting Vibrator Stacker Machine

Product Description

Product Description YJ series full auto high speed Printing slotting die-cutting vibrator stacker Machine
MACHINE GROUND DRAWINGS
Product Parameters
MAIN TECHNOLOGY PARAMETERS

Model	YJ1224
Machine inside width (mm)	2800
Max feeding paper size(mm)	1200*2400
Max effective printing size(mm)	1200*2200
Max die cutting size(mm)	1200*2300
Min slotting distance(mm)	280*100*280*100
Min coverage size(mm)	400*800mm
Design speed(pcs/min)	220pcs/min
Max Working speed(pcs/min)	0-200 pcs/min
Standard Thickness of printing plate	3-6 mm
Printing precision	±0.5mm
Thickness of cardboard	2.0-9mm
Wall thickness	50mm
Main motor power	About 30 kw

IMPORTANT FEATURES The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on. Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately . Control system: Using industrial man-machine interface and inverter as the core of the electrical control system;Realize the rapid change of production orders, intelligent and comprehensive program control function, make the machine production and adjustment more humane, higher safety, product yield greatly improved. The main machine wall panel material is HT250, artificial aging treatment, large processing center processing, to ensure high strength and high precision. All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded. Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision. The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision. The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit. Lead edge feeder with vacuum sucntion, easy operate, high precision. All units move automatic orderly, locked by pneumatic, alarm continually Main motor is VFD, working stability, low power consumption. After the paper feeding part, printing part and slotting part are combined with the machine, the electric type returns to the zero position.
vibrator and stacker unit
Vibrator unit
1.Frequency conversion speed regulation, can control the main engine speed, safe and reliable operation
2.Equipped with waste removal force fan and waste discharge brush
3.Waste paper discharge device
4.Seismic waste strength adjustable
5.High elastic round belt has long service life and cannot damage cardboard.
6.Introduced foreign advanced experience, better separation of waste from the finished product after die cutting, beat to remove waste, improve working conditions and efficiency.
Stacker unit
1.Design speed: 150m/min
2.Maximum stacking length of gantry: 2800mm
3.Upper gantry stacking, electric or hydraulic lift.
4.The whole wide belt conveys the paper neatly and smoothly;
5.Electric stacking, and collection of cardboard, can make the cardboard storage height;
6.Photoelectric measurement of stack height. Detailed Photos
