PU Coiled Hose Air Compressor Hose

US$0.40-2.60 500 Meters (MOQ)

Basic Info.

Model NO.
PU air hose
Type
Thermoplastic Pipe
Color
Color
Hollow
Hollow
Shape
Round
Usage
Water Supply Pipe
Size
1/4"-1"
Thickness
1-5mm
Unit Length
20,40,50,100 Meters
W.P.
10bar
B.P.
30bar
Smell
No Smell
Temperature
-5~+65degree
Sample
Free and Available
Package
Carton
Transport Package
Carton
Trademark
HIGHQUA or OEM
Origin
Zhejiang, China
HS Code
3917390000
Production Capacity
100000meter Per Month

Product Description

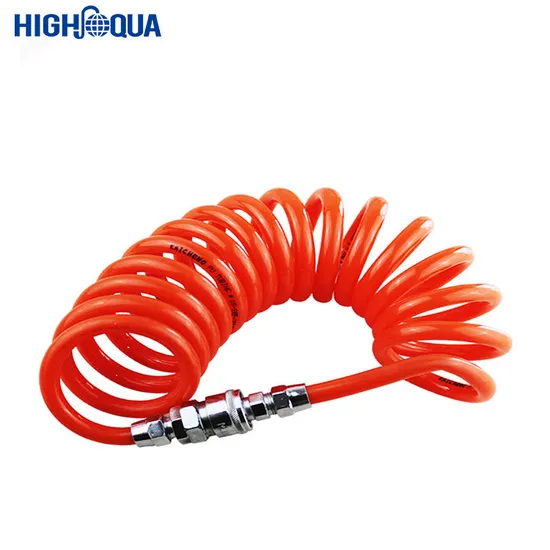

High quality PU Coiled Hose air compressor hose
Pu air hose/chinese high performance PU air hose/ high quality PU air hose/ PU air hose factory /PU air spiral hose
Specification
Specification
Inner diameter
(mm)
 Working pressure
(Mpa)
Outside Diameter
(mm)
I
 II
 III
 I
 II
 III
GPU_4
 4±0.4
 50
 65
 80
10.5±0.6
 12±0.6
 13±0.6
GPU_6
 6±0.4
 40
 60
 70
 12.5±0.6
 15±0.6
 17±0.6
GPU_8
 8±0.4
 30
 40
 50
 14.7±0.6
 17±0.6
 19±0.6
GPU_10
 10±0.4
 26
 38
 47
 16.5±0.6
 19±0.6
 21±0.6
GPU_13
 13±0.6
 21
 31
 38
 20±0.6
 23±0.6
 25±0.6
GPU_16
 16±0.6
 15
 25
 35
 24±0.8
 27±0.8
 29±0.8
GPU_19
 19±0.6
 13
 20
 25
 27±0.8
 30±0.8
 32±0.8
GPU_22
 22±0.6
 11
 15
 20
 31±0.8
 34±0.8
 36±0.8
GPU_25
 25±0.7
 10
 14
 18
 34±0.8
 37±0.8
 39±0.8
GPU_32
 32±0.7
 8.5
 12
 15
 40±0.8
 43±0.8
 45±0.8
GPU_38
 38±0.8
 7
 10
 12
 47±0.8
 49±0.8
 51±0.8
GPU_45
 45±0.8
 6.5
 9
 11
 54±0.8
 56±0.8
 58±0.8
GPU_51
 51±0.8
 6
 8
 10
 61±0.8
 63±0.8
 65±0.8
Picture showing
Character:
1. Excellent performance of resistance agaist high- pressure, vibration, wear, corrosion and bending
2. The diameter size within the high-precision control which is suitable for a variety of joint.
3. Multiple colors for your selection; Red, orange, yellow, black, blue, green, nature, transparent, etc.
4. Excellent flexibility, the bevelling radius is small, the operating temp and the working pressure scope is wide
Quality Assurance:
Each production process would be controlled strictly. The material as export standard.
Packaging&Shipping
Packaging Details: By transparent plastic film and woven belt or your request.
Delivery Time: We are responsible for shpping goods to delivery port on time.
Exhibition show
If you have any other questions, please do not hesitate to contact us!
