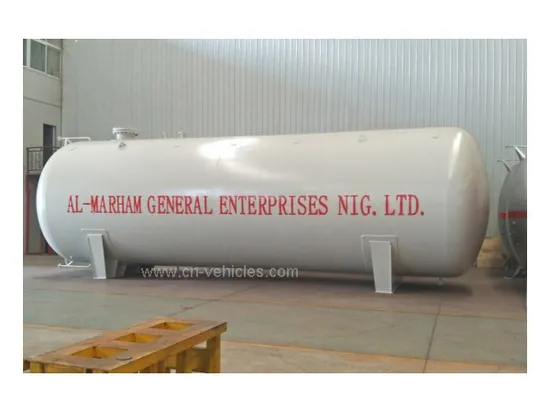

50ton Gas Pressure Vessel 100cbm LPG Storage Tank Price

Product Description

50ton gas pressure vessel 100cbm lpg storage tank price
LPG transport tank semi-trailer can be modified and designed according to the needs of customers, It is used for transporting LPG gas.
Liquefied petroleum gas (LPG) tank trailer include LPG tank body (made of Q345R steel plate), axle, tire, support leg, traction pin, double outlet double valve box (pressure gauge, thermometer, tight cut valve, ball valve), iron anti-wave plate, safety valve, level gauge, fire-extinguishing appliance, toolbox, anti-static tape, spare tire frame, plastic tire fender, etc.
Tank Material:Q345R
Diameter :2700mm
Shell thickness:14mm
End plate thickness:16mm
Size(L*W*H):10962*2728*3318MM
Standard accessories:Safely valve , Stop valve , Magnetic plate level gauge , Pressure gauge , Thermometer .
Description:

Tank Essential Information
Volume of Tank	52 CBM (52,000Liters)
Overall Dimensions(L*W*H)	12840*2480*3800mm
Filling Weight	20832 kg
Tare Weight	15300 kg
Total Weight	36132 kg
Wheelbase	6800+1310+1310mm
Shell of tank
Products	Liquefied petroleum Gas(propane)
Fluid Property	Flammable
Design Temperature	-20~50ºC
Design Pressure	1.61 Mpa
Corrosion Allowance	1 mm
Major Materials of Bearing Pressure	Tanker body:Q345, 12mm
	End plate:Q345R, 12mm,double ellipse
	Main beam:16Mn
Detection
Heat Treatment	Overall treatment in a furnace,600ºCto 640ºC
Flaw Detection	100% Flaw detection
Test Pressure	1.61Mpa
Hydraulic Test	2.1Mpa
Magnaflux inspection	Aim at welding place thatflaw detection can not cover
Manhole(As customer's requirement)	1, on top
Safety Valve(As customer's requirement)	1, on top
Running system
Axles	3*13TFuwa brand
Suspension	Mechanical suspension
Tire	12R22.5 Tubeless tire,13 including one spare tire
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Landing leg	JOST brand, two-speed, manual operating
King Pin	3.5 inch

Truck picture:
Application:
LPG truck is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.
Details :
Loading :
Customer visit:

---
