Automotive Equipment Training Model Board School Equipment Hybrid Engine Trainer

Product Description

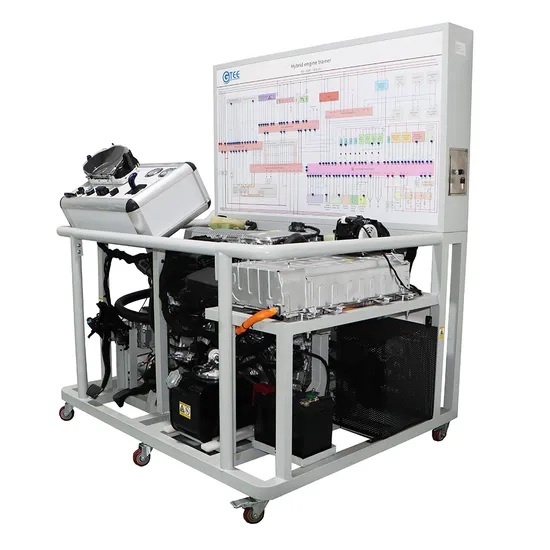

Automotive equipment training model board school equipment Hybrid engine trainer
P.N.: GTAT-1004
Technical parameter
1. Dimensions: 1600x1200x1800mm; (L x W x H)
2. Battery: DC12V/60AH
3. Fuel tank: 10L
4. Coolant: Glycol
Product description
The trainer displays the basic principles and structures of hybrid engine(oil-electric), and simulates its operation.
Product composition

No.	Name	QTY
1	Test panel	1 set
2	Dashboard	1 set
3	Engine ECU	1 set
4	Automatic transmission ECU	1 set
5	Hybrid control ECU	1 set
6	High voltage battery control ECU	1 set
7	Power control ECU	1 set
8	Anti theft control ECU	1 set
9	Air conditioner control ECU	1 set
10	Gateway ECU	1 set
11	Diagnostic seat	1 set
12	Smart key	1 pcs
13	High voltage battery	1 set
14	Half axle brake system	1 set
15	Fuel pressure gauge	1 pcs
16	Vacuum pressure gauge	1 pcs
17	Engine assembly	1 set
18	Fuel tank 10L	1 set
19	Accelerator pedal	1 set
20	Radiator and cooling electronic fan	1 set
21	Battery12V 60Ah	1 set
22	Relay	1 set
23	Fuse box	1 set
24	Fault set module (Manual switch type)	1 set
25	Mobile stand	1 set

Main Features:
1. Engine works properly and smoothly, it can show the structures and work processes of hybrid gasoline engine;
2. It can clearly show the working process of the gasoline engine and three-phase AC motor.
3. The test panel is printed with complete electrical control system schematics and mounted with test terminals, the signal parameters such as voltage, resistance, frequency, etc. of the sensors and actuators can be tested by multimeter or oscilloscope.
4. The trainer is equipped with diagnosis seat, it can be connected to scanner to read or clear fault codes, and read data stream and can be used for other engine self-diagnosis function.
5. Equipped with ignition switches, relays, safety devices, safety shields, flywheels and other rotating parts shields.
6. Fault setting module: Manual switch type (Optional intelligent type)
Training courses
1. Introduction of main components;
2. Demonstration of hybrid engine operation, startup, acceleration, etc.;
3. Sensor and actuator signal measurement;
4. Operation of the scanner;
5. Fault set and troubleshooting;
6. Engine basic maintenance;
Suitable engine models listed below:

P.N.	Engine model
GTAT-1004-001	Toyota Corolla hybrid engine
GTAT-1004-002	Toyota Camry hybrid engine
GTAT-1004-003	Toyota Levin hybrid engine

Packing&Shipping Solid plywood box and normally ship by sea, but if the size is not big, also by air, FedEx or DHL, TNT and so on.
Company Profile Guangzhou Guangtong Educational Equipment Co.,LTD is a well-known high-tech company, we participate in many international educational tenders and help our customer win the tender. We are specialized in development and manufacturing of professional Educational Equipment including automotive teaching equipment, air conditioning and refrigeration teaching equipment, electrical and electronic teaching equipment, lift teaching, solar energy trainer, electric car training device and other vocational training equipment etc. GTEE is located in Baiyun District, Guangzhou City and adjacent to Guangzhou Baiyun International Airport. With our several years of design, development, manufacturing and international service experience and expertise, GTEE is growing up and developing very fast. We continuously focus on providing high quality products with competitive price and reliable after sale services for our overseas customers. We will response to our customers within 24 hours after get the feedback and requirements.
Show Room:
Customer Photos:
FAQ Q: Are you trading company or manufacturer? A: We are manufacturer. Q: How long is your delivery time? A: Depends on product quantity and stock. Please check with our sales team. Q: What are your terms of payment? A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance, 50% T/T balance before shipment. Q: Do you offer aftersales support ?
A: Yes, of course, we will provide training materials together with the device, and also we can provide on-site training and installation if customer request. We also have technical engineer for online or remote support, and if within warranty, products parts damaged due to our quality problems, we will send parts via DHL to you for replacement for free as we seek long term cooperation with customers. Q: How to have exclusive sales rights of GTEE? A: Place order to GTEE, when the order amount reach certain level, GTEE and customer will negotiate about exclusive rights. Or send your company profile to GTEE, after GTEE evaluation, start from general agents and gradually become exclusive agent.

---
