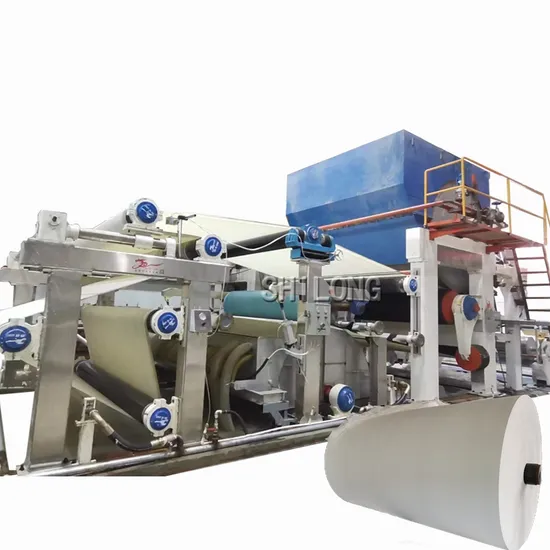

Paper Mill Tissue Paper Machine 2880mm Fully Automatic Toilet Paper Manufacturing Machine Toilet Paper Roll Making Machine

Product Description

2880mm toilet paper making machine Company Profile
>> ABOUT US
Qinyang Jindelong Paper Making Machinery Factory is located in Henan province, China. Which is the Chinese Advanced Leader & Manufacturer, specializing in the pulp and paper industry for more than 30 years. From process design, equipment manufacturing, factory design to installation, commissioning and training, we can provide a full range of products.
>> CERTIFICATION
>> WORKSHOP
Business Show
>> COOPERATION CASE
From 2007 to the present, with decades of processing and export experience, our factory has projects in many overseas countries, including customers in the Middle East, Africa, Central Asia, Europe and other countries, and has more than 80 production lines around the world.
Because of the excellent quality of our products, we have won the trust and new orders of many new and old customers. Product Parameters
>> PARAMETERS

Model	SL-787	SL-1575	SL-1880	SL-2880	SL-3200	SL-3900
Paper width (mm)	787	1575	1880	2880	3200	3900
Capacity (t/d)	0.8-1.5	4-5	5-8	8-10	8-10	10-15
Design speed (m/min)	80	210	210	210	210	220
Working speed (m/min)	40-60	100-180	150-180	160-190	160-190	160-200
Raw material	White waste paper, wood pulp
Paper weight (gsm)	12-40 g
Customized on demand

All our toilet paper machine model and available machine type: 600, 787, 1092, 1575, 1760, 1880, 2000, 2100, 2400, 2640, 2880, 3200, 3600, 3900, 4000 (mm)......
Detailed Photos
>> PRODUCT PHOTOS

No.	Name	Function
1	Forming wire	Extract the pulp fiber to felt
2	Alloy dryer cylinder	Dry the wet paper
3	Double-layer dryer hood	Cover dryer and collect the hot&moist air diffused by dryer
4	Axial-flow ventilator	Ventilate and pull out the hot&moist air in the exhaust hood
5	Roots vacuum pump	Provide vacuum force for suction box
6	Air compressor	Provide compressed air for pneumatic devices
7	Frequency conversion controlling cabinet	Control the speed of the machine
8	Vacuum suction box	Absorb water contained in the wet paper
9	High concentration hydrapulper	Break the waste paper into pulp
10	High frequency vibrating screen	Separate and remove large impurity in the pulp
11	Impeller	Stir pulp and keep pulp well-mixed with water
12	Pressure screen	Getting ride of impurities
13	Bleacher	Bleach and whiten pulp
14	Double disc refiner	Grind, refine and fibrillation
15	Low concentration sand remover	Remove sand and impurities
16	Pulp pump	Pulp transportation
17	Electrical operation cabinet	Control machine operation
18	Boiler	Provide steam for the drying section

Raw Material&Finished Products
>> RAW MATERIAL
Packaging & Shipping
>> PACKING & SHIPPING
Large machines are different from small machines. Their export packaging is stricter than small products. In order to avoid collisions during transportation, we wrap the outer layers of the machine with wood chips and wrap them in plastic film. In order to save space in the container, we package the sporadic parts together. Installed in a spare place in the container.

FAQ
>> OUR SERVICE
>> FAQ
1.How long it will take to get the quotation?
--We usually give reply within 24 hours after getting your inquiry. If you are urgent to get the quotation, please feel free to call or tell us by email, then we can reply you as the first priority.
2. How long is your Warranty?
--All our products will have one year guarantee and we will continue to offer advice and spare parts after this period.
Within 1 year after receiving our machines, under right operation and non-artificial reasons, If there are any damaged parts or accessories, we will replace them by air-mail or express immediately free of charge.
After 1 year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, we are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
3. Can you make paper mill design for us?
--Yes, we have professional team with rich experience of paper mill design by CAD software. You only need to tell us your open land dimension, we will make your future paper mill design.
4. What's the payment terms?
--30% initial payment when place your order, 70% balance payment before shipment.
5. How about your machine quality, we are worry about the quality.
--Shilong is a mature brand in china, 30 years manufacturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System. And can match all the CE standard or more strict standard. Our paper machine is running well in more than 20 countries.
6. Could your engineer teach and train our worker and stay in our factory for long time?
--Yes, we will send rich practiced experience engineers to your country to install and test the machine and train your workers, but you should pay them salary.
7. Your machine price is high,is there any discount?
--Our machine price is reasonable, we are factory, so the price of machine is factory price, we are looking forward to cooperate with you, please do not hesitate to contact our sales for good price

---
