Product Details
Product Description
Product Description
Features:

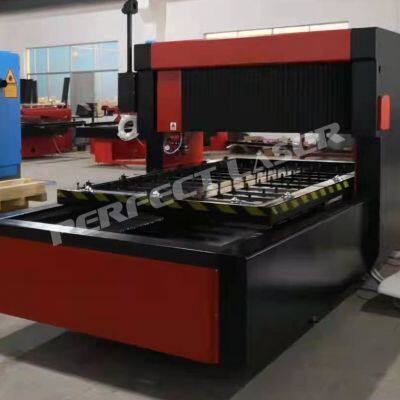

1.This die cutting machine with gantry type mixing light beam structure, good rigidity, good dynamic performance, beautiful appearance, small floor space, short optical path and good spot consistency.
2.With intelligent electronic servo laser head cutting system, the die cutting machine can automatic adjustment of the bending and thickness of the material to ensure the consistency of the cutting seam.
3.Adopt Panasonic servo motor drive system, Taiwan hi brand precision linear guide rail, high cutting precision.
4.This die cutting machine is equipped with strong smoke extraction system, less smoke and dust, create a good working environment.
5.Equip with industrial laser constant temperature cooling system and freeze dryer.
6.The die cutting machine can optimize the mixing optical path, reduce laser refraction, simple operation, and Seam - cutting uniformity.
7.Equip with high strength and stable machine tool, the die cutting machine can work long without distortion and no distortion.
8.Both parties to import precision ball screw transmission ( more accurate than general precision ), precision electronic knife die error 0.05 mm.
9.No contact production, the operation process is simple. Laser cutting need not touch, equipped with humanized touch control panel, easy to operate.
10.This wood board cutting machine is stable and the failure rate is low. It uses the United States import deviation correction controller, French import tension control device, professional fine control system, low failure rate, strong performance.
Technical Data:
Model
| PEC-1500-1325
|
Work table
| 1350 * 2550 mm
|
Cutting accuracy
| ±0.05 mm
|
Repeatability
| ≤ 0. 02 mm
|
Machine tool size ( long × width × height )
| 4000*2300*1800 mm
|
Power supply
| 380V 50Hz 10A
|
Laser type
| axial fast flow co2 laser
|
Cutting material and thickness
| 6-25mm wood board, ≤ 5mm steel plate, ≤ 20mm acrylic plate, etc.
|
Cutting speed
| 0-18000mm/min
|
Cutting blade
| 0. 45 mm, 0. 71 mm, 1. 05 mm etc., adjustable
|
temperature
| 0 - 45℃
|
Cooling system
| water - cooling
|
File format supports
| PLT, DXF, AI, etc
|
Working gas
| helium He ,nitrogen N2 ,CO2 ( gas purity requirements 99.999 % )
|
>>
