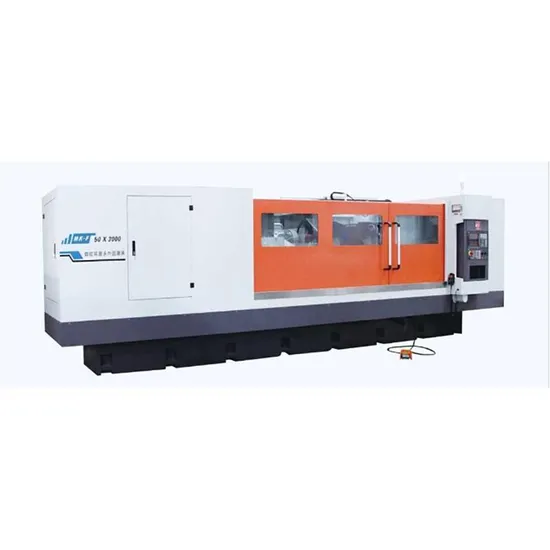

Mk-F50 CNC Double Grinding Head Cylindrical Grinding Machine

Product Description

Product Description

Product Parameters

Description MK-F50/(1000-1500-2000-3000)

center height		270mm
grinding diameter		φ30~φ500mm
Diameter of rotation		φ540mm
Max.grinding length		1000150020003000
Center distance		1100110021003100
center height		270mm
Max,weight ofworkpiece		1000Kg
Headstock	Morse taper	6MT6
	speed	15~500r/min
Tail stock	Morse taper	6MT6
	Sleeve movement	70mm
Wheel	Wheel size	A:φ750×100×305 B:φ750×75×305
	Linear speed	≤45m/s

Description MK-F50/(1000-1500-2000-3000)

(A,B) Wheel stock	Max. movement	400mm
	Spindle tilt Angle	0°
	Spindle motor power	15kW
worktable	Type	Adjustable taper
	Max. turning Angle of upper table
	Minimum resolution of drive servo motor	0.001mm
Transverse feed mechanism	Ac servo motor torque	22Nm
	Minimum resolution of drive servo motor	0.0001mm
Total power		40kW
Roundness		≤0.003
Cylindricity		≤0.008/1000
Surface roughness		≤Ra 0.32μm
