Woodworking Combination Machine with Boring Unit CNC Cutter Wood Processing Center/ Intelligent CNC Drilling Holes and Cutting Cente

Product Description

1 Production Introduction:
Applicable industry:
1. Woodworking industry: three-dimensional wave board processing, wooden doors, screens, process fan window processing, auxiliary processing of various furniture products.
2. Advertising industry: advertising signs, logo production, acrylic cutting, plastic molding, production of a variety of materials advertising products.
3. Mold industry: It can engrave metal molds such as copper, aluminum and iron, as well as non-metal molds such as marble, plastic board and wood board.
4. Other industries: It can engrave all kinds of shadow carvings and reliefs, which are widely used in the craft gift industry.
2 Main technical Parameters:

1	Name	1325 Two Head CNC Router With a Vacuum Adsorption And Pressure Roller
2	Working range(X*Y*Z)	1300*2500*200mm
3	Working accuracy	±0.05mm
4	Body	Trapezoid, heavy-duty, annealed
5	Table Structure	Vacuum
6	Transmission	X\Y: grind helical rack Z:TBI ball screw
7	Table Size(L*W*H)	3000*2000*1800mm
8	Transmission	X\Y: Grind Helical Rack; Z:TBI\HIWIN\PMI Ball Screw
9	Max. travelling speed	15m\min
10	Max. working speed	10-15m\min
11	Spindle power	6KW*2
12	Spindle speed	18000rpm
13	Spindle cooling type	Air
14	Motor	Stepper
15	Working voltage	380V, 50HZ, 3Phase
16	Command code	G code

3 More Detail Show

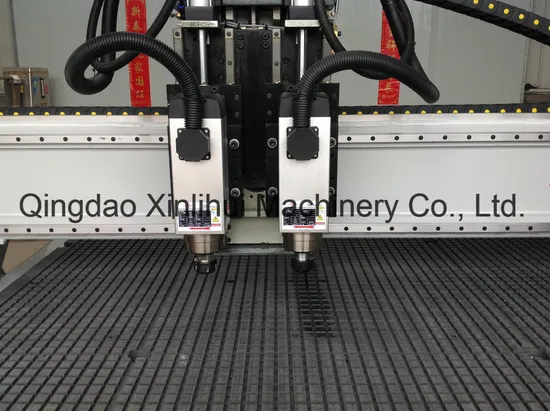

Detail machine pictures, all photoes are for 100% real shooting !
4 Features:
This model Woodworking engraving machine The whole machine tool is designed and manufactured by thick-walled steel pipe through bridge experts through finite element analysis. The gantry and the arm are finished with thick-walled square steel and steel plate after welding, which provides a strong environmental guarantee for equipment operation.
All imported precision screw and square guide rails imported from Taiwan, with high life, high precision, large cutting force and faster speed.
The finite element design of the welded bed, all mechanized operation processing, aging assembly, high precision.
Structural steel is better, the strength is greater, and the weight of the machine is larger.
Technical hard spindle, high cutting force and high efficiency.
The transmission system can adopt domestic advanced stepping system with good performance and stable operation.
Rigorous procedures, excellent accessories and high assembly precision
Using computer direct connection control system, it is easy to realize the function of breakpoint continuous engraving and power-off memory, and it can run safely without worry. The software system adopts international instruction format and is compatible with various CAD such as Wentai/Carved/TYP3/Artcam/Castmate. /CAM design software output path, operability, customer satisfaction.
5 Sample show
Company Information
Qingdao Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturer in China. The company is located in Wangtai town.
Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.
The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill machine, Pur wrapping machine, paper sticking machine, vacuum laminating machine, edge banding machine, computer engraving machine and the other series and over sixty standards. With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abroad. Our products are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic. It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our customers.
We would like to work a new win-win development with the insight colleagues and we welcome all the new and old friends to visit our company and crest a brilliant tomorrow together.

---
