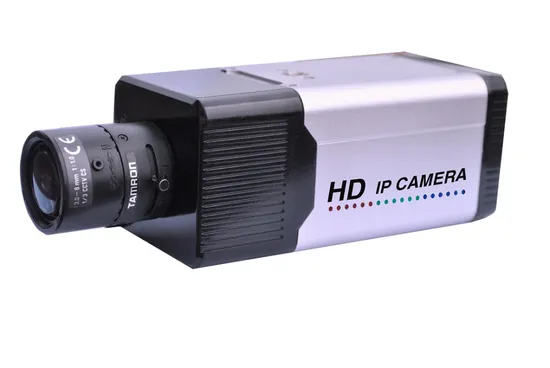

Fsan 2MP IR Human Car Detection Smart Ai Digital Box Camera

Product Description

FSAN 2MP IR Human Car Detection Smart Ai Digital Box Camera
Product Description
--Use the built-in deep learning algorithm of human shape and car shape, suitable for traffic statistics
--Only human or vehicle detection and analysis, other moving objects will not be affected by detection
--Support target counting, electronic fence, retrograde detection, off-site detection
--Support to calculate the statistics of import and export persons and vehicle flow
--Support to view daily/monthly report statistics and report to export
--Support Smart IR to prevent infrared overexposure at night
--ICR infrared filter automatic switch, to achieve real day and night monitoring
--Support corridor mode and add longitudinal and narrow monitoring areas in the environment
--Support multi-line OSD, font, size, color, position adjustable
--Support 3D digital noise reduction and DWDR
--Support automatic electronic shutter function, adapt to different monitoring environment
--Support a variety of intelligent alarm linkage output
--Support GB28181 access
--Support Email, FTP and NTP service
--Supports HTTPS encrypted transport
--Change the password when starting the initial equipment to ensure the security of the password
--Support two-way voice intercom
--Support 1-way alarm input / 1-way alarm output
--Support Micro SD card (128G) local storage
--Support PoE power(optional)
Product Parameters

		W6237IQ97B
CAMERA
Image sensor		1/2.8"SONY 5.0/4.0 Mega Progressive Scan Exmor CMOS
Min.illumination		0Lux/F1.4 (IR ON);Color: 0.01Lux/F1.4,B/W:0.001Lux/F1.4
IR distance		/
Electronic shutter		Auto/ Manual(1/5~1/100000)
Day/ Night		ICR switch, auto, color, B/W, ext
Lens		/ Focus: Manual
Lens interface		CS
S/N ratio		≥50db (AGC OFF)
Output		PAL/NTSC adjustable
WDR		DWDR(Off/ Low/ Middle/ High)
Light board control		/
3D N/R		Off/ Low/ Middle/ High/ Higher
Defog		Off/ Low/ Middle/ High
Mirror		Off/ Horizontal/ Vertical/ 180º rotation/ Corridor mode(90º rotation, 270º rotation)
Slow Shutter		Off/ On
Exposure control		Auto/ Manual
Image setting		Brightness, Contrast, Saturation, Sharpness, Hue
AUDIO/VIDEO COMPRESSION
Video compression		H.265/H.264
H.265 Encoding		Main Profile
H.264 Encoding		BaseLine / Main Profile / High Profile
Encoding features		NTSC: main stream1920X1080@30fps,, sub-stream: D1@30fps PAL: main stream: 1920X1080@25fpss, sub-stream: D1@25fps
Max. Resolution		1920X1080
Video bit rate		Constant bit rate, variable bit rate (16kbps~8000kbps)
Video type		Complex stream/ Video stream
Audio compression		G.711u
Audio bit rate		64Kbps
Audio control		Support input/ output volume gain control
ROI		Support 4 zones, multi-stage level
Watermark function		/
NETWORK
Network protocol		TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP
Access protocol		GB28181 (optional)
Browser		Support IE, Chrome, Firefox, Safari
Video preview meanwhile		8
User permission		User add/ modify/ delete, permission management
Safe mode		Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification
Motion detection		Set detection zone, Multi-level sensitivity can be set
Tampering alarm		1 zone
Privacy Mask		4 zones
Intelligent analysis		Detection and analysis of the behavior of persons or vehicle targets only
Intelligent analysis		Target Counting, Retrograde Detection, Off-site Detection, Electronic Fence
Event linkage		Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage
Multicast function		Support
ANR		Support, match with NVR
Mobile surveillance		Support Apple, Android
Device exception detection		Support network disconnected, IP conflict, illegal access alarm
OSD		Title, time and date overlay, multi-line OSD, OSD color optional
DST		Support
Snapshot		Support snapshot, snapshot resolution is encoding resolution
System update		Support remote update
Other		/
Human and vehicle shape detection
Target Counting		The deployment time period can be set
		Type of protection: personnel, vehicles, people and vehicles
		Test line can be set up, up to 4
		Statistical methods: A→B/B→A, the number of people increased or decreased
Electronic Fence		Setup time can be set
		Test line can be set up, up to 4
		Detection type: target entry, exit, wander, or intrusion detection
Retrograde Detection		Setup time can be set
		Test line can be set up, up to 4
Off-site Detection		Setup time can be set
		Test line can be set up, up to 4
		Departure time is available
Report statistics (valid with TF card)		Target count: daily/monthly reports, line charts, bar charts, lists
		Electronic fencing: lists
		Retrograde detection: list
		Departure detection: list
INTERFACE
Network Interface		RJ45 10M/100M network adaptive
Analog video output		/
Audio		1CH Line input/ output
Alarm input		1CH input
Alarm output		1CH output
Reset		Support
RS485		Support
TF card		Support, max 128G, Micro SD(SDHC /SDXC) card local-storage
Other		/

Detailed Photos1. Audio output
2. Audio input
3. RS485
4. Power supply input
5. Reset
6. Network interface
7. TF Card
8. Line in
9. Line out
