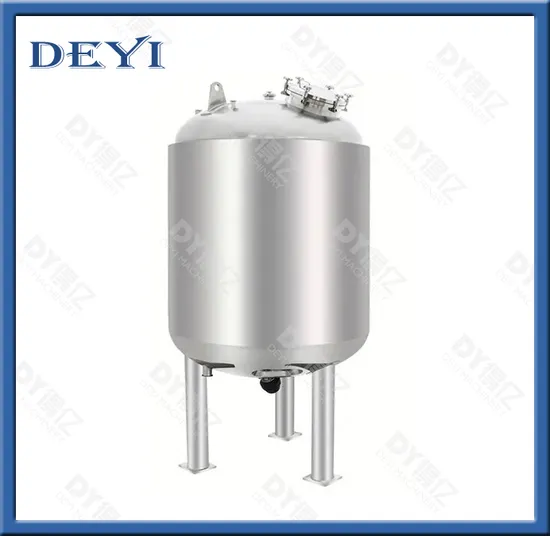

Stainless Steel Heat Preservation Storage Refrigeration Tank or Sealed Tank for Liquid Soap Chemical Oil 500L

Product Description

PRODUCT INFORMATION
Stainless steel multifunctional tank is usually used for storage, cooling and mixing in field including Food&Beverage, Dairy,Pharmaceutical and chemistry.

Structures for reference:
Single-layer, dual-layer and three-layer stainless steel tanks with or without agitator to blend product, with a wide capacity range from 100L to 5,000L and even larger are customized according to customers' requirements.
Emulsifier mixing tank are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards .
1. Brand: DEYI
2.Material :304 /316(L)
3.Capacity:50L-30000L
4. Single layer/Double layers/Three layers
5.Finish:Mirror or Matt Polish; Ra<0.4um
6.Three or four feets, as request.
7.Certification: ISO9001
Configuration of tank:1. Quick open manhole.
2. Various types of CIP cleaning heads.
4. Adjustablet tank legs.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements ).
8. Liquid level meter and level controller (According to customer requirements ).
9. Eddy-proof board.
We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
Technical Parameters

Type	DY-500	DY-1000	DY-1200	DY-2000
Material	SS304/316	SS304/316	SS304/316	SS304/316
Voltage	220v/460v/380v	220v/460v/380v	220v/460v/380v	220v/460v/380v
Emulsifier power	7.5kw	7.5kw/11kw	15kw	15kw
Agitator speed	40rpm	40rpm	40rpm	40rpm
Emulsifier speed	3000rpm	3000rpm	3000rpm	3000rpm
Layers	single/double/three
Top Head type	Dish top, Open lid top, Flat top
Bottom type	Dish bottom, Conical bottom, Flat bottom
Heater	Steam or Hot-water or electric
Jacket	Steam/Coil
Insulation	PU insulation
Agitator	Impeller, Anchor, Turbine, High shear emulsifier, Magnetic mixer, Anchor mixer with scrapper
Inside finish	Mirror polishing, Ra<0.4um
Outside finish	2B or Satin finish
Application	Honey, chocolate, jelly...

Details

Product Show
Packing and Shipping detail:
Application:

---
