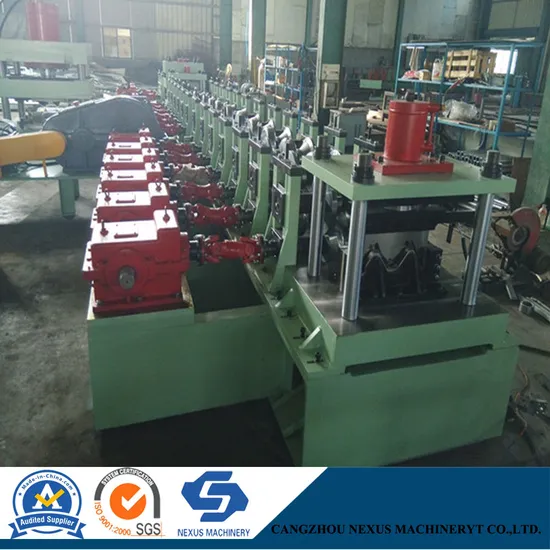

Customized Two Wave W Beam Steel Highway Fence Guardrail Roll Forming Equipment

Product Description

Customized Two Wave W Beam Steel Highway Fence Guardrail Roll Forming Equipment
Profile drawings:
The thickness of Material: 2.0-4.0 mm
Working flow:
Uncoiler-Feeding-Leveling-- hydraulic punching-Roll forming-Hydraulic cutting-output table
Main Specification
Manual decoiler
Capacity: 3 ton Loading width: MAX 600mm Valid expanding range for coil inner diameter: 480-520mm Main roll forming system
Main motor power: 50kw Separate motor reducer: 750type Punching: Hydraulic pre-punching before forming Punching mould:Cr12mov Hydraulic power: 7.5KW Roller material: Gcr15 bearing steel and quench treatment hardness 58-62, chrome coated0.05mm Leveling rollers: 7rollers(three upper and four lower) Roll forming station: 16 groups Diameter of main shaft: 100mm Drive: independent gearbox with universal joint Raw material: Black steel & galvanized steel Thickness of Raw material: 2.0-4.0mm Width of Raw material: 482mm Working speed: 10m--15m/min(Exclude cutting time) Cutting: Hydraulic cutting after forming, Auto cutting when reach the set length. Cutting blade: Cr12mov Cutting tolerance: +/- 1.5mm Hydraulic pressure: 30Mpa Weight of machine: about 25ton Size of machine: About 9000×2150×1500mm L x W x H Color of machine: yellow and blue Coder: Omron Control: PLC Delta, made in Taiwan, 380V 50HZ, 3 phases (Also can design) Computer operating panel: touching screen

---
