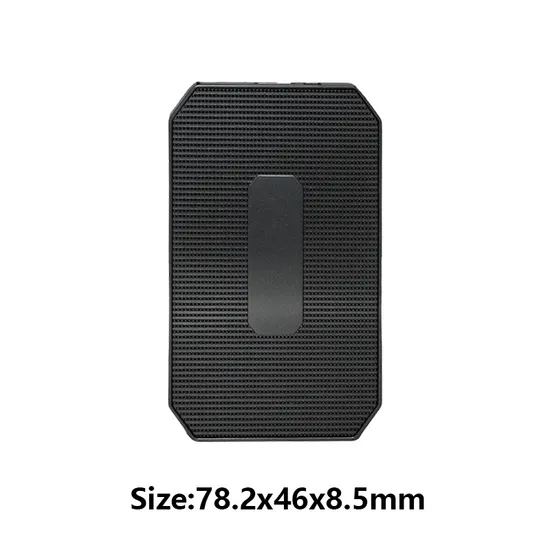

Compact Portable Mini Hard Disk Gun Color Metal Solid State Drive External SSD for Computer

Product Description

ULIKE DESIGN CO. LIMITED founded in China.
We are a professional electronics supplier specializing in the design and sales of consumer electronic products including:USB Flash Drive,SD Card,TF Card,SSD and RAM products By accumulation of over 10 years industry experience.
Ulike Design has set up long partnership relationship with lots of overseas customers. Ulike Design strives to deliver products and services with honesty and speed. We hope to privde cusotmer with private and idea designed products. Product Description
Compact portable mini hard disk gun color metal solid state drive external ssd for computer

Test items

Vibration test

Aging test

bad block scan

install the system

Power on and off test

Sequential read and write (MB/S)(ASSD)

OK

OK

OK

OK

OK

NO

project

Test content

determination

1

Vibration test

100%

Put the bare board into plastic bags separately and place it on the vibration tester for a vibration test for 1 hour.

OK

2

format

100%

Format SSD Check whether the SSD can be formatted normally

OK

3

High temperature aging test

100%

Use the BurnInTest V8.1 burn-in test to test the SSD at 1% read and write cycles for 1000 cycles.Whether there is an error in the aging test.

OK

4

bad block scan

100%

After BurnInTest V8.1 ages, the number of bad blocks scanned out is less than 2%, and there are no new bad blocks.

OK

5

install the system

100%

Install WINDOWSXP, WINDOWS 7, WINDOWS10 system testing.

OK

6

Power on and off test

100%

On and off power test 3000 cycles

OK

7

Sequential read and write

100%

Use Anvil Storage Utilities /CDM/HD TUNE/AS SSD Benchmark/ATTO_Disk_Benchmark to test the SSD's sequential read and write speed and record. Record it and determine whether it meets the normal reading and writing speed of this series of products.

OK

8

bad block scan

100%

After H2, the number of bad blocks scanned out is less than 2‰, and there are no new bad blocks.

OK

9

Data storage stability test

100%

Put the SSD through H2 at room temperature, and then store it in a refrigerator (subzero) or a high temperature of 90 Place in the oven for 12 hours, then return to normal temperature and conduct H2 test at room temperature (read SSD disk data), no loss and slow reading speed

OK

10

Visual inspection

100%

Check that the casing/sticker/packaging complies with the packaging specifications for this product range.

OK

NO	Testing software
1	Anvil Storage Utilities
2	HD Tune
3	CrystalDiskMark
4	ATTO_Disk_Benchmar
5	AS SSD Benchmark
6	h2testw.exe

Detailed Photos
Performance test
AS SSD Benchmark
(Type-C USB 3.2 interface test speed)
AS SSD Benchmark is an SSD solid state drive transfer speed test tool. This software can measure the duration of the solid state drive reading and writing performance
(Type-A USB 3.1 interface test speed)
CrystalDiskMark
(Type-C USB 3.2 interface test speed)
It is an SSD solid state drive transfer speed test tool. This software can measure the performance of solid state drives such as continuous reading and writing.
(Type-A USB 3.1 interface test speed)
ATTO_Disk_Benchmark
(Type-C USB 3.2 interface test speed)
It is a disk transfer rate detection software that can be used to detect the read and write speed of the hard disk.
HD Tune
(Type-C USB 3.2 interface test speed)
A compact and easy-to-use hard disk tool software, its main functions include hard disk transfer rate detection, health status detection, temperature detection and disk surface scanning, etc. In addition, it can also detect the hard disk's firmware version, serial number, capacity, cache size, and current Ultra DMA mode, etc.
H2testw.exe
(Type-A USB3.0 interface test speed)
Tool to test SSD reliability and average read and write speeds
Certifications
Our certifications
Packaging & Shipping
FAQ
FAQ
1 Can we custom our logo on the SSD?
We support customized logo and customized package(MOQ 1000pcs)
2 What kinds of logo we can put on the SSD?
Generally they are silk printing ,laser logo,full printing, pad printing or epoxy logo.
3 How to make the payment?
We accept T/T,Paypal(5% commission),Western Union,And if you pay by RMB,Alipay,wechat,bank transfer,cash
4 Do you have samples?
Yes! For regular items, we will keep stock. You can ask for dummy samples or real samples. The samples can be shipped by your express account, or you can pay us the freight, and we will ship via our account.
5 How long we can get the goods?
It depend on the QTY.
<1000 4-6 days
1000-5000pcs 7-15 days
5001-10000pcs 15-25days
6 What is the minimum quantity?
Minimum order quantities (MOQ) are listed on each individual product page. Minimums may be higher for custom products colors. Orders for less than the stated minimum may be possible with a less than minimum (LTM) charge. No imprinted orders will be accepted for less than 50% of the listed MOQ. Blank product may be available at a lower MOQ, please consult your WORTHSPARK Representative as this is depend on stock.
7 Warranties & Returns
Warranty - All of our products are guaranteed against defects for 1 year.
8 How about the shipment
We ship the goods by sea or Express as DHL,TNT,FedEx.

---
