Stainless Steel Belt Jt1250SA Customized Size

Product Description

Company introduction:
Shanghai Jingtao Steel Belt Technology Co. Ltd. is a manufacturer that integrates design, R&D, production, sales and service, specializing in steel belt cooling solidification equipment producing granules and flakes for melt materials , having a professional creative technical team with over 20 years experience.
Due to the rapid development of the market and customers, in 2017, Jingtao bought a land to construct new modern factory in Huzhou, Zhejiang. Jingtao strictly follows the ISO9001 quality management system. In 2019, a new modern plant was put into use, which can meet the annual production capacity of 100 units , and was also equipped the latest production equipment ,production line, machine center, cutting center ,welding center and technical test center. Jingtao has established the strategic partnership with China Science Academy . As high-tech enterprise, Shanghai Jingtao has become one of renowned steel belt cooling solidification equipment manufacturer with high quality product, cutting-edge technology, user-friendly design and professional service, as well as cooperation experience with world top 500 companies at home and abroad. Jingtao has been rated as the most developmental enterprise by Forbes.
Jingtao products mainly include steel belt pastillator, double belt coolers, single belt coolers, high quality steel belt, double steel belt press, drum vulcanizer,single steel belt electronic diaphragm machine etc, widely used in various fields such as resin, daily chemical , fine chemical, electronic , pharmaceutical intermediates, food, casting film, wood, rubber, plastic and new material industries. Through near 20 years continuous creation of products, Jingtao equipment in the resin industry ranks first; Jingtao double steel belt coolers occupies 76% of the domestic market ; Jingtao new fourth-generation steel belt pastillator technology is also leading the industry's new technical development and environmental protection new standard. Jingtao steel belt introduction Steel belt is one of the main parts of solidification systems, because qualified steel belt is vital to premium granules and flakes.

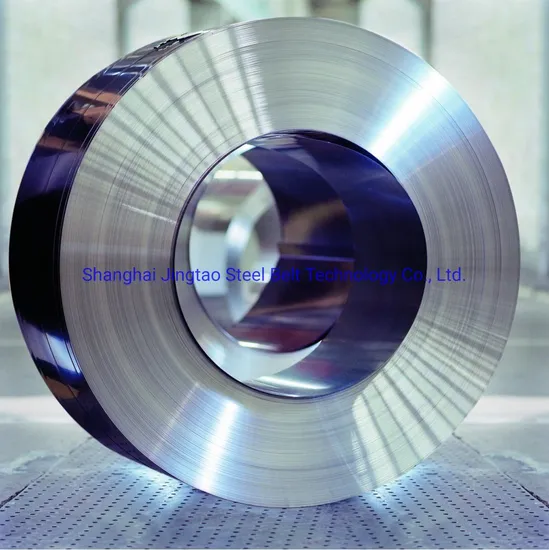

Jingtao steel belt is characteristic of special chemical and mechanical features that suitable for cooling and solidification, using leading Japan brand Nippon Yakin with a history around 100 years as steel belt raw material, which specially design for Jingtao as melt solidification. Jingtao steel belt can apply to professional convey systems, suitable to cooling, dry, baking and pressing in different industries. Jingtao steel belt JT1250SA is a cold-rolled austenitic stainless steel belt with reasonable and optimized fatigue resistance, excellent corrosion resistance and weldability
Why Jingtao Jingtao purchase qualified top 1 steel belt raw material and don't compromise on raw material. Jingtao use qualified Nippon Yakin steel belt instead of band steel, steel belt is special design requirement to meet cool and melt solidification, while band steel can't meet the requirement, but many others using band steel to save cost in general. Jingtao has over 20 years rich experience in steel belt installation and welding, so we can ensure steel belt stick well with guide V-belt and can weld well Jingtao steel belt features Premium mechanical characteristics much higher than the market, such as tensile strength, yield strength, hardness, straightness accuracy, elongation Premium chemical features as well and superior heat transmission High quality steel belt ensures stable capability and efficient High wear resistance Fatigue and corrosion resistance Smooth surface, easy to clean and maintain Good rigidity and high hardness for long lifetime with low elongation Resistance and wide range temperature adaptable to thermal changes Full width specially treated for high uniformity throughout the long life. Versatile application for different material in different field Tailor made size available
Chemical Composition (%)

C	Si	Mn	Ni	Cr	P	S
0.15	1.00	2	6-8	18	-	-

Mechanical Properties

Yield Strength	N/mm2	>1000
Tensile strength	N/mm2	>1250
Fatigue strength	N/mm2	>550
Hardness	HV	>360
Elongation	%	<19
Welding coefficient		0.70
Density	kg/m3	7.92
Specific heat	kJ/kgK	0.50
Elastic coefficient (200ºC) RT	N/mm2	180,000
Thermal expansion (200ºC) RT	10-6/K	17.8
Thermal conductivity (200ºC)	W/mk	18
Resistivity	μΩcm	98
Maximum working temperature	ºC	250ºC

Jingtao steel belt specification Jingtao steel belt selection is based on drum diameter, speed, material characteristic and environment.
Steel belts will be supplied both ends open to weld on site or pre-welded loop. Different applications need different precision belts, ensuring optimal economic benefits.
Please consult our sales to choose suitable steel belt specification based on following sheet.

Thickness (mm)	Width (mm)
	600	800	1000	1200	1500
0.3	√	√
0.4	√	√
0.5	√	√
0.6	√	√
0.8	√	√	√
1.0	√	√	√	√	√
1.2	√	√	√	√	√

Jingtao steel belt services, including:
Steel belt installations Steel belt repair Steel belt inspection Steel belt replacements Belting and spare parts 4.Jingtao steel belt guide adhesive V-belt Jingtao use special tools to make the V-belt stick into back of steel belts tightly to prevent deviation.
The firmly bonded rubber guide adhesive V-belt will balance the steel belt effectively and also prolong the lifetime of steel belt.
5.Jingtao steel belt automatic tracking system
Jingtao develops automatic tracking system to fulfill customers' need for high reliable and stable steel belt operation automatically. With elaborate design, quick automatic reaction and high reliability, Jingtao automatic tracking system can narrow set range for better running accuracy of steel belt and can reduce breakdown loss as fully automatic tracking, so more and more customers from different industries need automatic tracking system solution.
6.Jingtao steel belt application
Cooling solidification conveying
Dry solidification conveying
Powder and solid conveying
Film casting conveying
FAQ:
1. How long is your delivery time?
Normally 3-4months and if some order is urgent, we will speed up two and a half months
2. Which brand of your steel belt?
Jingtao steel belt adopts Nippon Yakin Japan brand.
3. Does you a factory directly?
Yes, Jingtao manufactures for more than 20 years and self-construst a new factory in Huzhou ,zhejiang in 2019. Before 2019, which is two and a half driving from Shanghai. our old factory is based on Shanghai before 2019. Now Shanghai is our markinging headquarters.
4.Do you have aftersales service in my country?
In southeast Asia, we have local aftersales service team. And for other country, we arrange after sales team from China directly.
5. Which material does your equipment make granules and how?
Normally it need molten material that is from liquid to solid. And our equipment uses steel belt as a conveyor and water spray as cooling. It has pastillator head, steel belt cooling zone, discharge section, safety section, wheel drum, support section etc.

---
